Name: 102863.00 Leeson 1/3 Hp 1800 RPM 208-230/460V 56C Frame TENV C-Face (No Base) 3-Phase Motor
SKU: ZWXLY 1698654886
Availability: InStock

Sale!

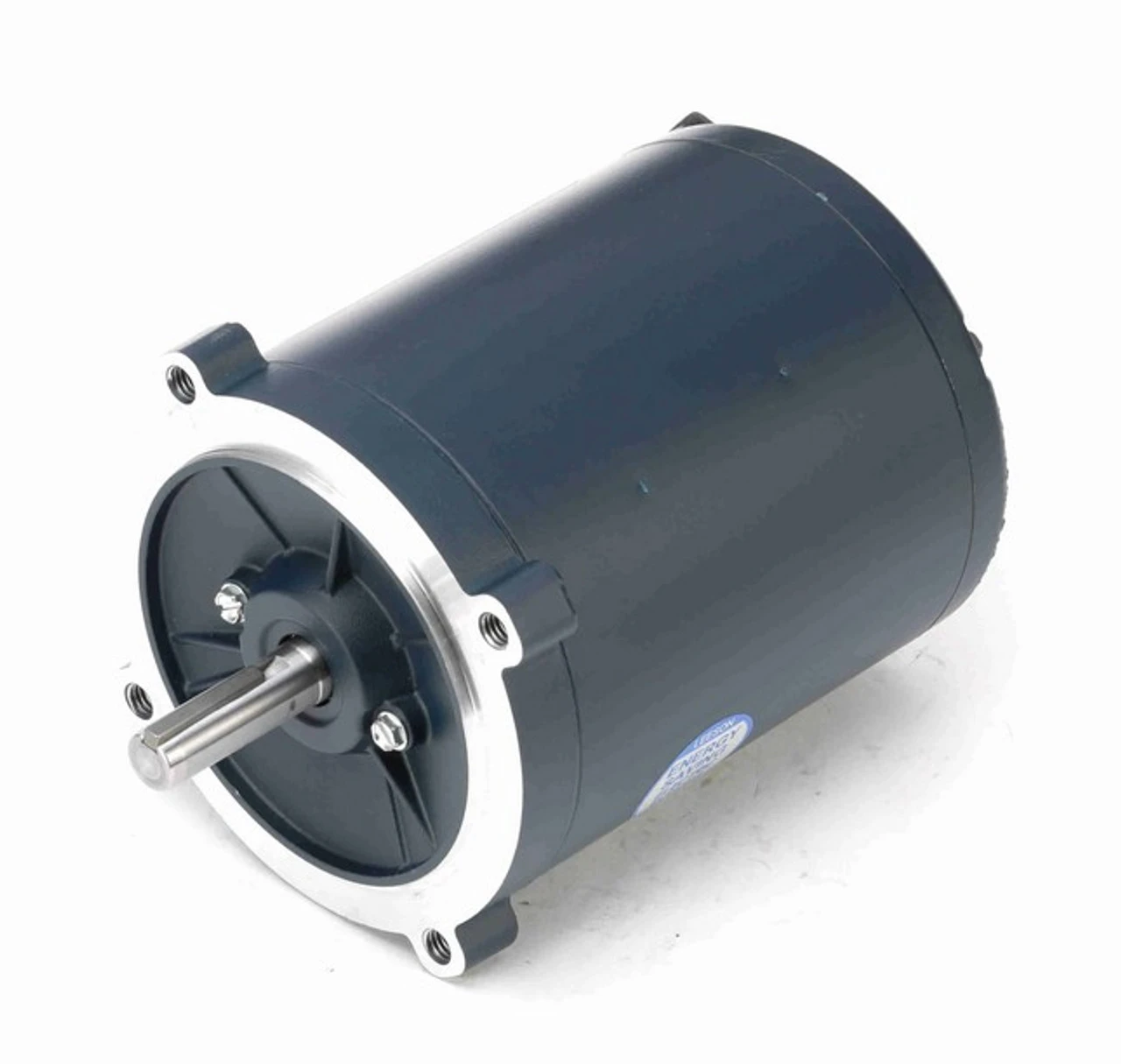

102863.00 Leeson 1/3 Hp 1800 RPM 208-230/460V 56C Frame TENV C-Face (No Base) 3-Phase Motor

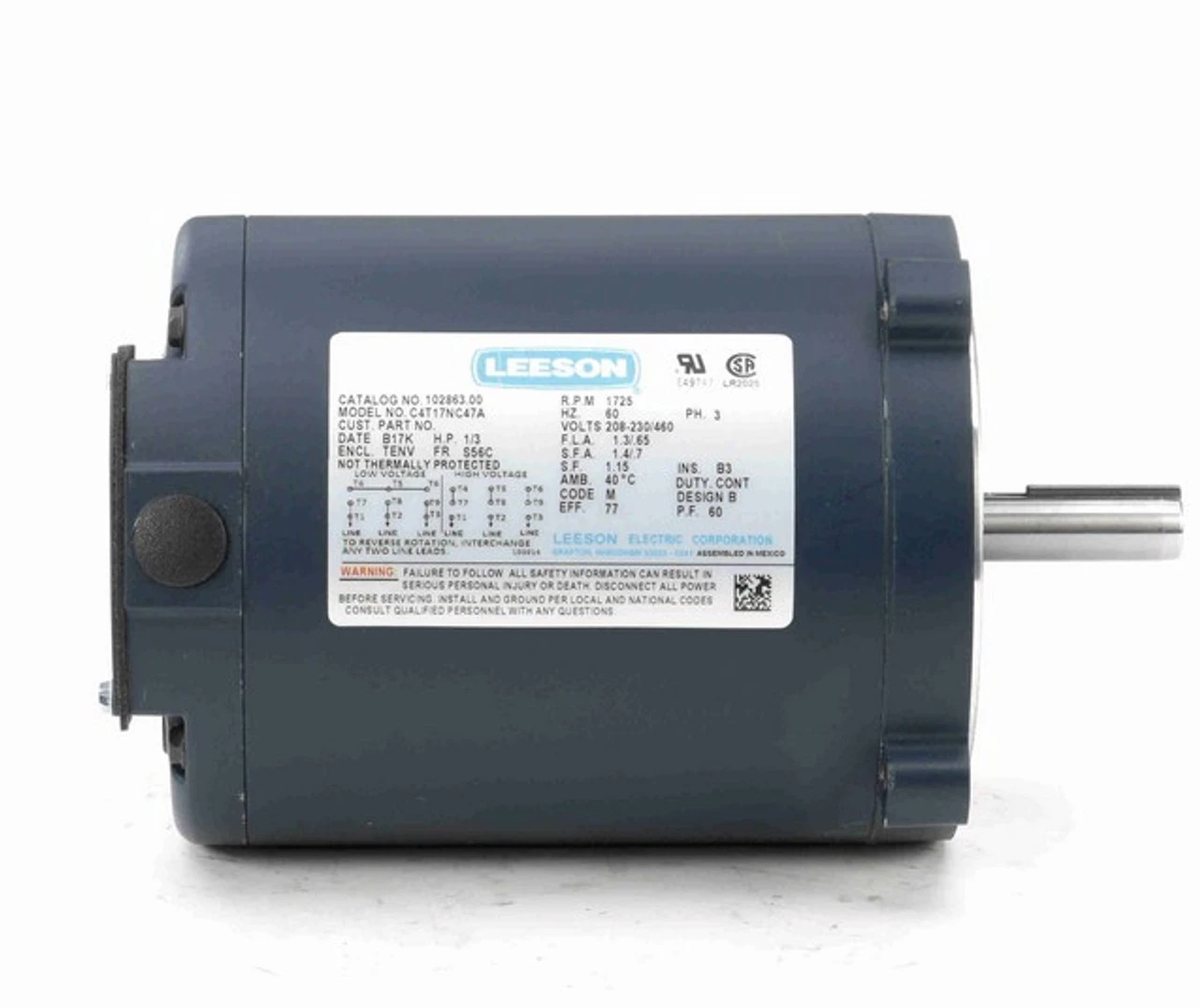

102863.00 Leeson 1/3 Hp 1800 RPM 208-230/460V 56C Frame TENV C-Face (No Base) 3-Phase Motor - Image 2

102863.00 Leeson 1/3 Hp 1800 RPM 208-230/460V 56C Frame TENV C-Face (No Base) 3-Phase Motor - Image 3

Original price was: $303.00.Current price is: $97.99.

SKU: ZWXLY 1698654886 Category: Electric Motors Tag: Leeson

Multiple payment methods, 100% payment security
Quality at its Finest
Uncompromising quality, every time.
Get Quality, Get More

Description
Reviews (0)

1/3 hp 1800 RPM, 1.3/0.65 amps 208-230/460 Volts 60 Hz. Three Phase Motor
NEMA 56C Frame Keyed Shaft 5/8″ Diameter x 1 7/8″
Service Factor: 1.15, Overload Protection = None
No Base, Reversible, Ball Bearings – Class B Insulation
1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a three phase Electric motor with a C-face mount. Motor has rigid base with C-Face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 3 3/4″ on center measured across the shaft. Wiring diagram on motor name plate. TENV = Totally Enclosed Non-Ventilated. 102863.00
