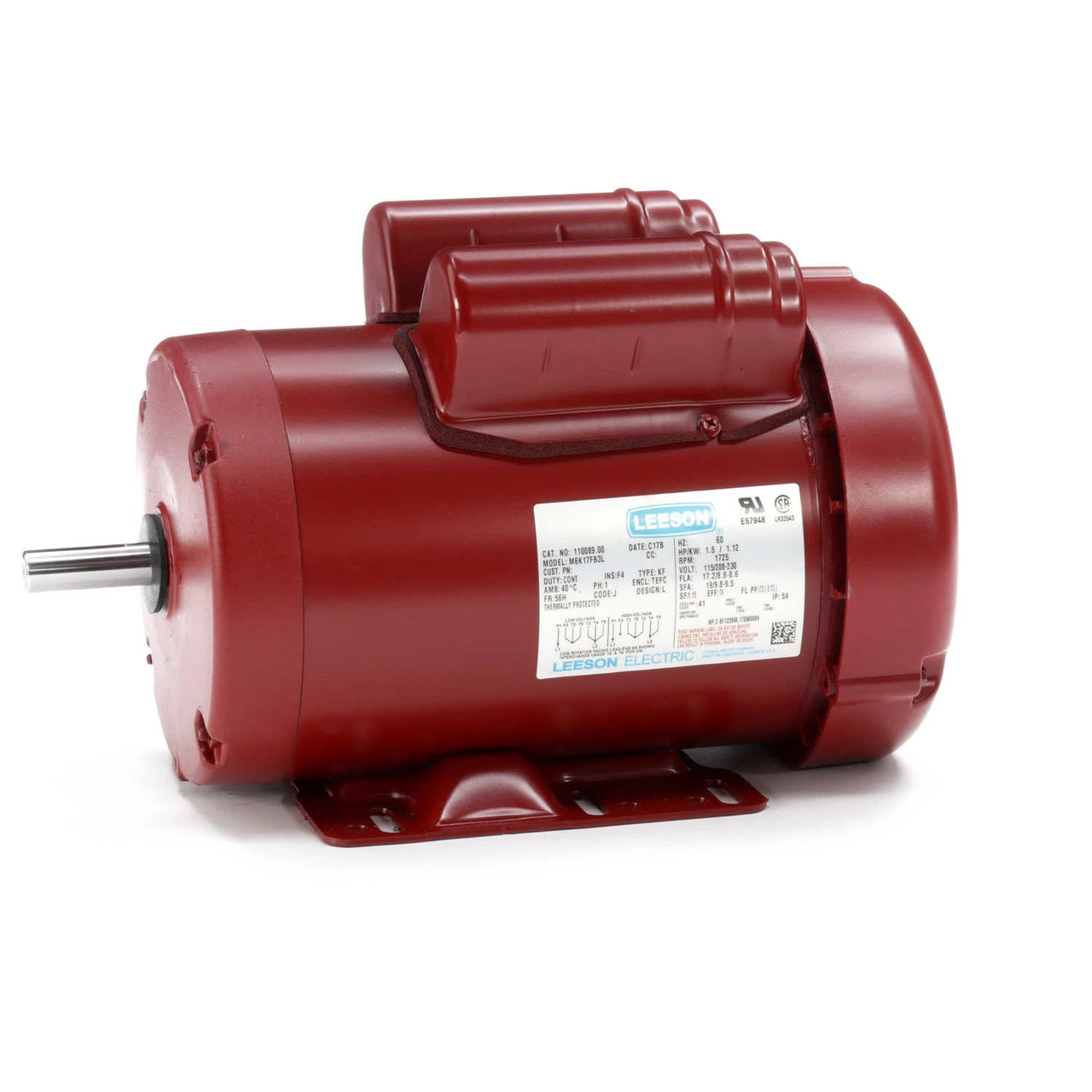

110089.00 Leeson | 1.5 Hp 1725 RPM 56 Frame TEFC (Farm Duty) 115/208-230 Volts

• 1.5 hp 1725 RPM, 17.2/8.6 amps, 115/208-230 volts 60hz
• TEFC – Totally Enclosed Fan cooled – Electrically Reversible
• Manual Overload Protection – Service Factor 1.15

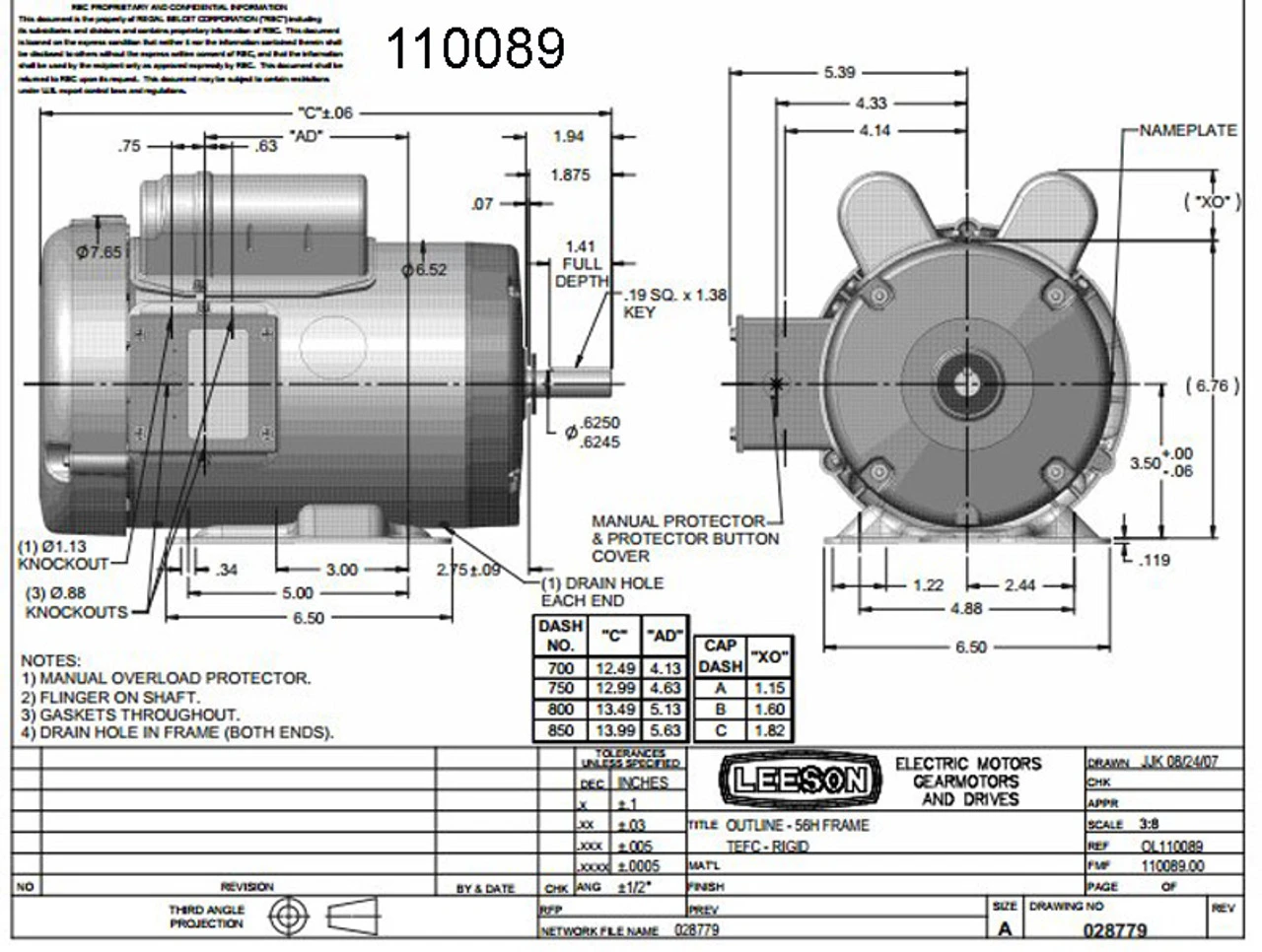

• NEMA 56H Frame – Flat Rigid base mount – 5/8″ Diameter shaft x 1 7/8″
• Class F Insulated – Ball Bearings w/low temp grease

Single Phase Leeson Farm Duty High Starting Torque, Capacitor Start/Capacitor Run motor. Overall Length = 12.61″ Excellent motor for any application requiring a 1.5 hp motor. This Totally Enclosed motor is Excellent for woodworking machines and other industrial machines where the motor is exposed to saw dust, dirt, oil and other particles in the air that will damage the motor. Motor also has manual overload protection to prevent damage in an overload situation. Mounting is standard NEMA 56 frame, flat base with 6 holes. 3″ x 5″ mounting. Farm duty motors have many extra features over standard motors such as double sealed bearings with Exxon grease for a temperature range of -20F to +350F. Rubber boot over reset button provides additional protection. Gasketed junction box and capacitor covers. 1 Year Manufacture Warranty.

Leeson Model M6K17FB3L; 110089.00
