Name: 110108.00 Leeson | 3/4 Hp 3450 RPM 56 Frame TEFC 115/208-230V W/overload Protection
SKU: ZWXLY 1698666583
Availability: InStock

Sale!

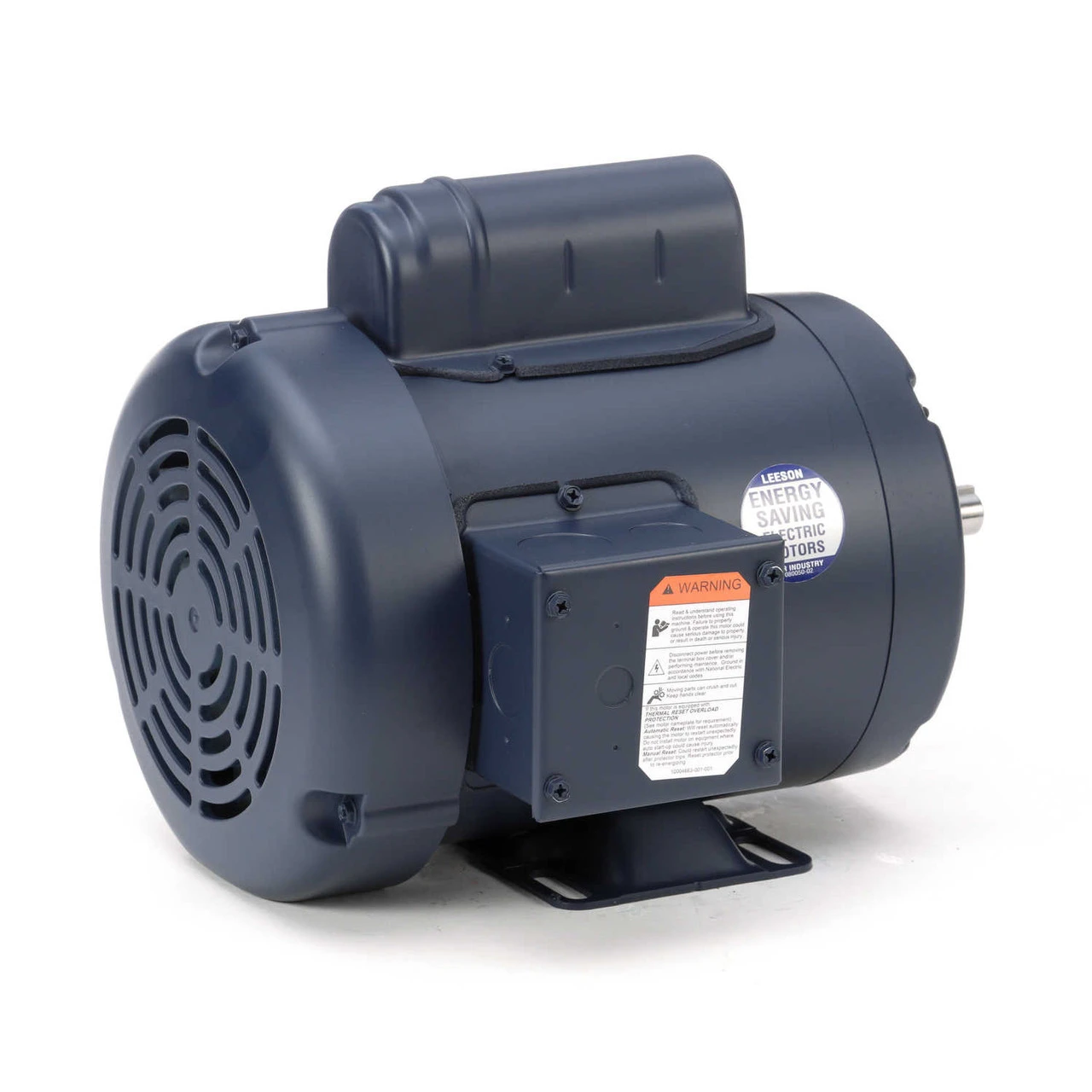

110108.00 Leeson | 3/4 Hp 3450 RPM 56 Frame TEFC 115/208-230V W/overload Protection

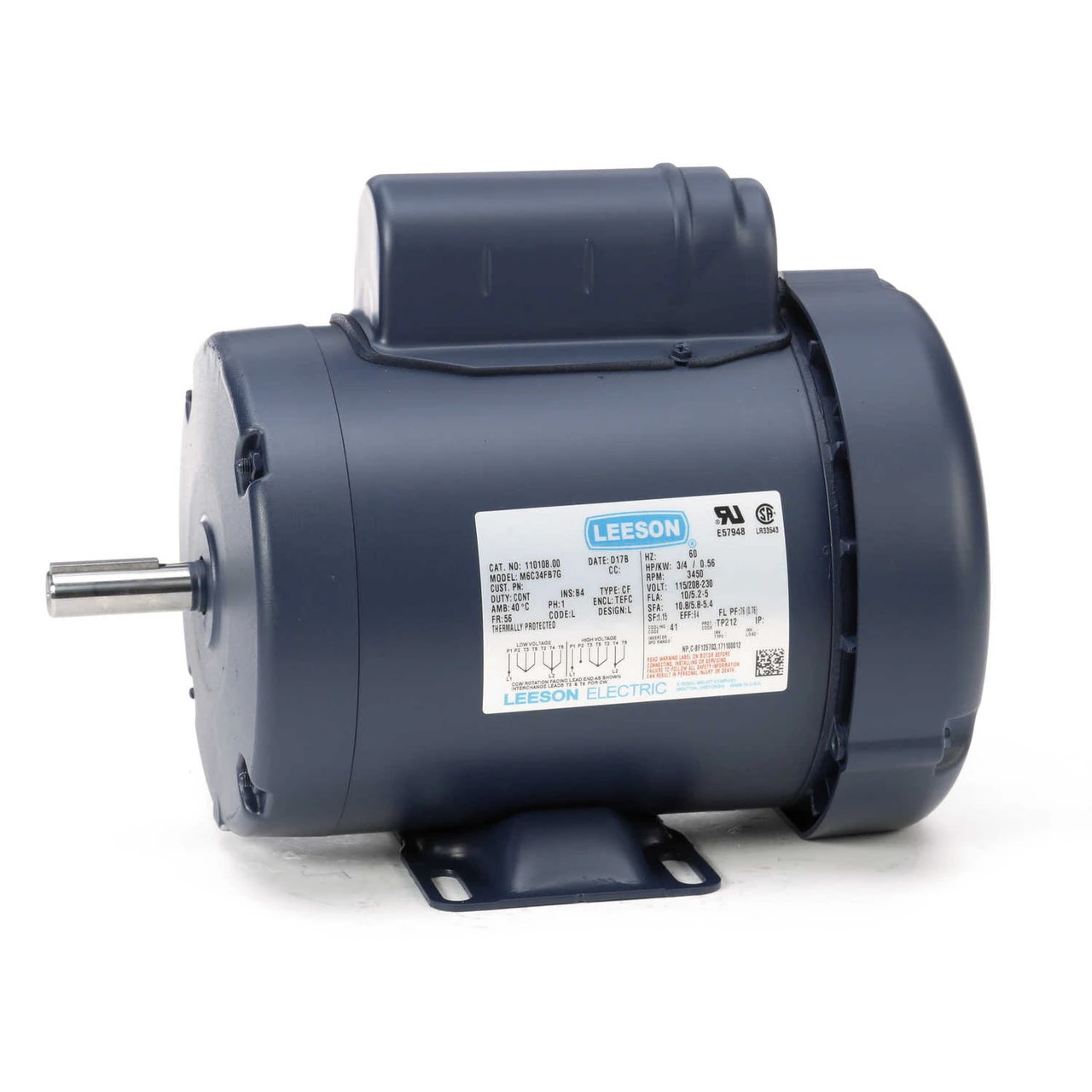

110108.00 Leeson | 3/4 Hp 3450 RPM 56 Frame TEFC 115/208-230V W/overload Protection - Image 2

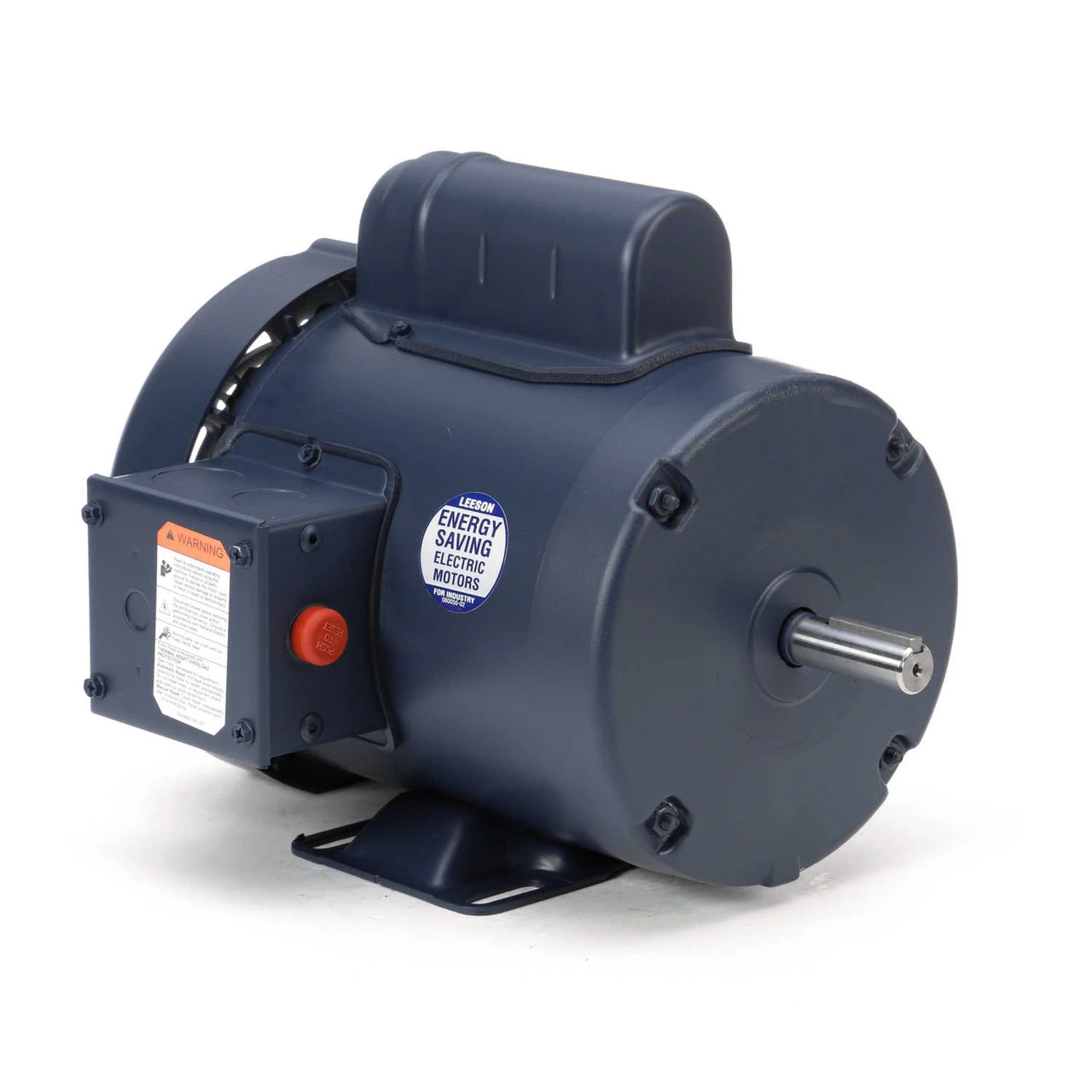

110108.00 Leeson | 3/4 Hp 3450 RPM 56 Frame TEFC 115/208-230V W/overload Protection - Image 3

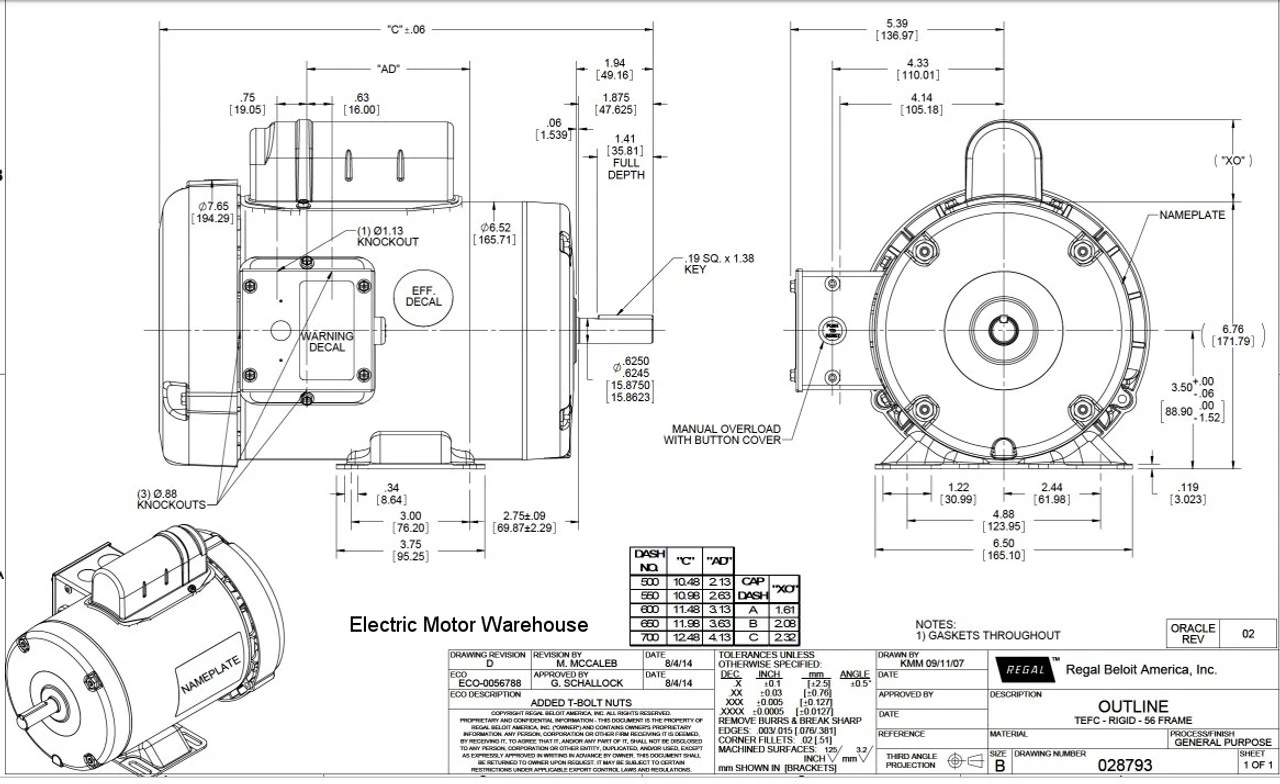

110108.00 Leeson | 3/4 Hp 3450 RPM 56 Frame TEFC 115/208-230V W/overload Protection - Image 4

Original price was: $381.30.Current price is: $98.99.

SKU: ZWXLY 1698666583 Categories: Electric Motors, Woodworking Motors Tag: Leeson

Multiple payment methods, 100% payment security
Quality at its Finest
Uncompromising quality, every time.
Get Quality, Get More

Description
Reviews (0)

3/4 hp 3450 RPM, 10.0/5.0 amps, 115/208-230V 60hz
NEMA 56 Frame Keyed Shaft 5/8″ Diameter x 1 7/8″
TEFC – Totally Enclosed Fan cooled
Manual Overload Protection – Service Factor 1.15
Rigid Base Mount – Ball Bearings – Class B Insulation
Overall Motor Length = 11.31 inches

This is an excellent motor for woodworking equipment such as table saws, planners, etc. Totally Enclosed Fan Cooled design prevent motor problems caused by wood dust and shavings. Motor has a keyed shaft and is electrically reversible. Motor name plate shows wiring diagram.

M6C34FB7G, 110108.00
