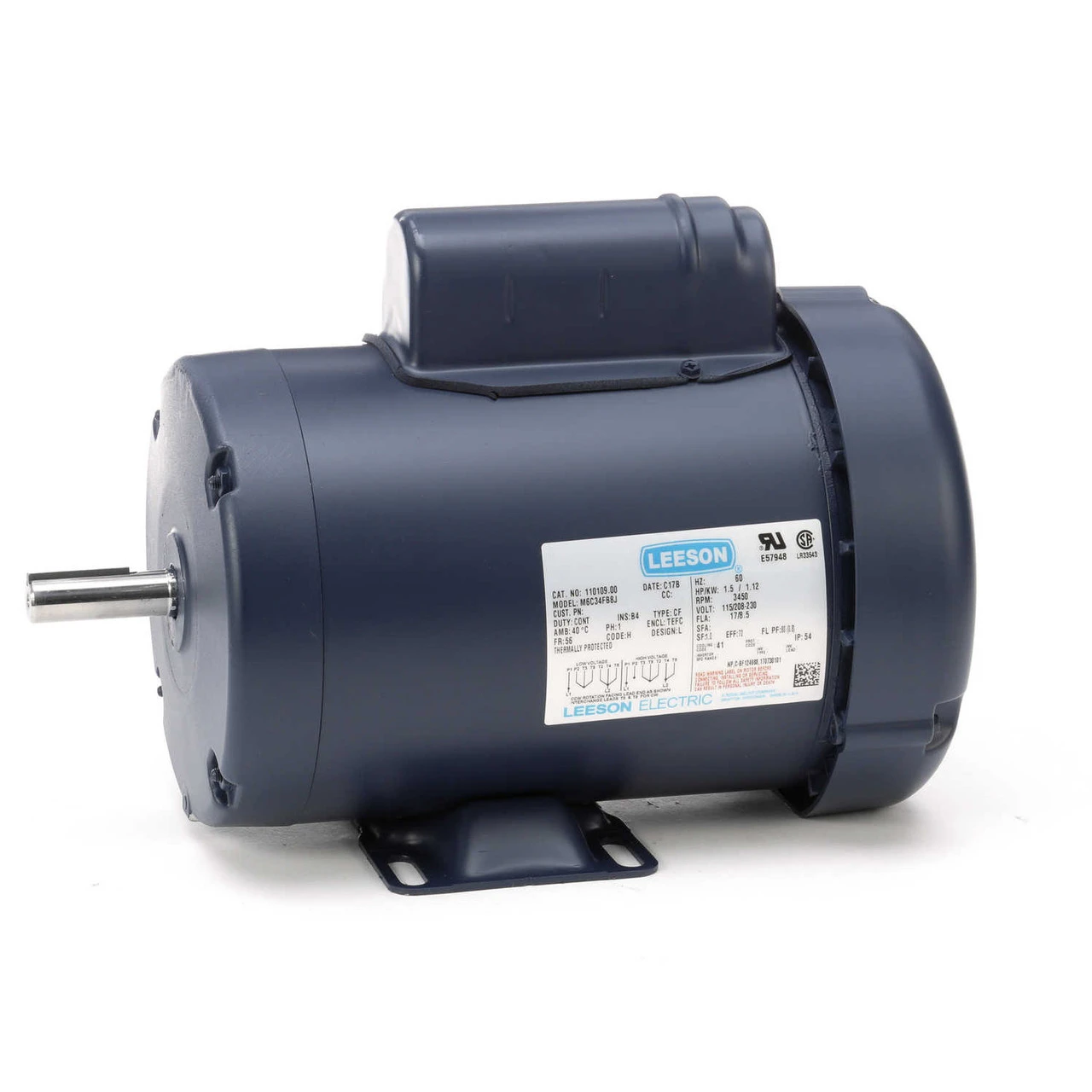

110109.00 Leeson | 1.5 Hp 3450 RPM 56 Frame TEFC 115/208-230V W/Overload Protection

• 1.5 hp 3450 RPM, 17.0/8.5 amps, 115/208-230V 60hz
• NEMA 56 Frame Keyed Shaft 5/8″ Diameter x 1 7/8″
• TEFC – Totally Enclosed Fan cooled
• Manual Overload Protection – Service Factor 1.0
• Class B Insulation
• Rigid Base Mount – Ball Bearings

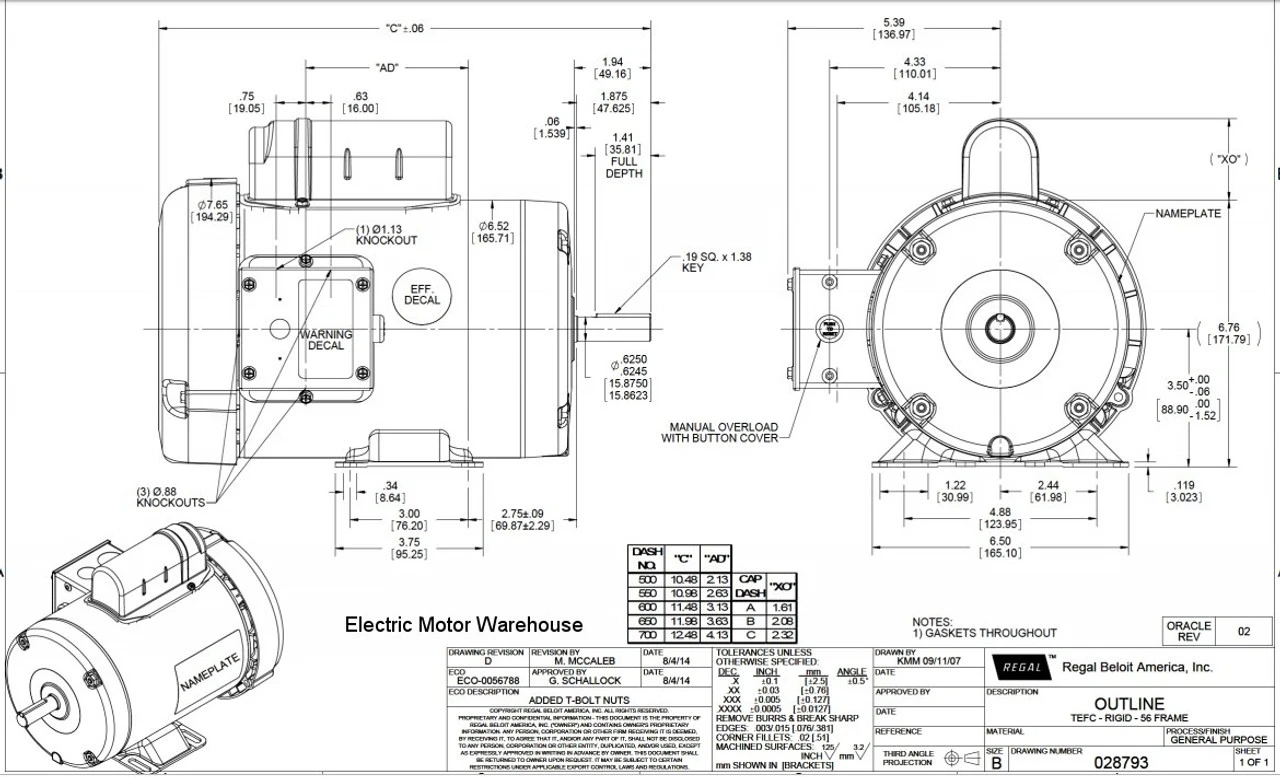

• Overall Motor Length = 12.31 inches

This is an excellent motor for woodworking equipment such as table saws, planners, etc. Totally Enclosed Fan Cooled design prevent motor problems caused by wood dust and shavings. Motor has a keyed shaft and is electrically reversible. Motor name plate shows wiring diagram.

M6C34FB8J, 110109.00
