- 1 hp 3450 RPM, 12.0/6.0 amps, 115/208-230V 60hz.
- Double shielded ball bearings to prevent failures caused by saw dust accumulation
- Open Drip Proof – Rigid Base Mounting – 56Z Frame
- Service Factor 1.25; Class B Insulation
- Capacitor Start Induction Run
- Overload Protection = None

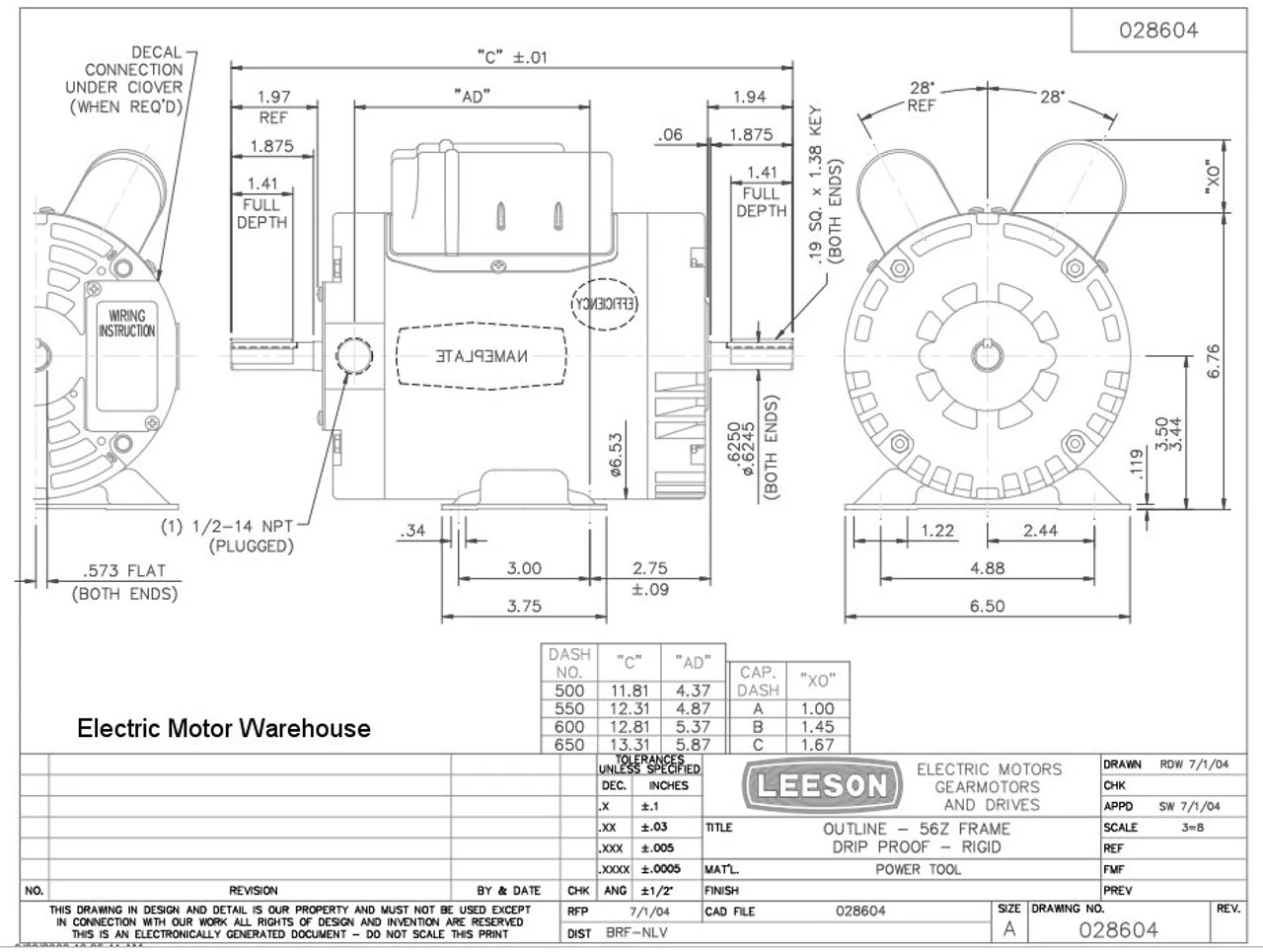

- Overall Motor Length = 12.81 inches, motor name plate shows wiring diagram
Capacitor Start for high torques and reduced amperage, improved efficiency. Encapsulated, electronic starting switch. Shaft extension each end, with keyway and flat 90 degrees apart of mounting. Useable shaft, each end is 1 7/8″ long by 5/8″ diameter. No overload protection. Capacitor start. 1 year manufacture warranty.

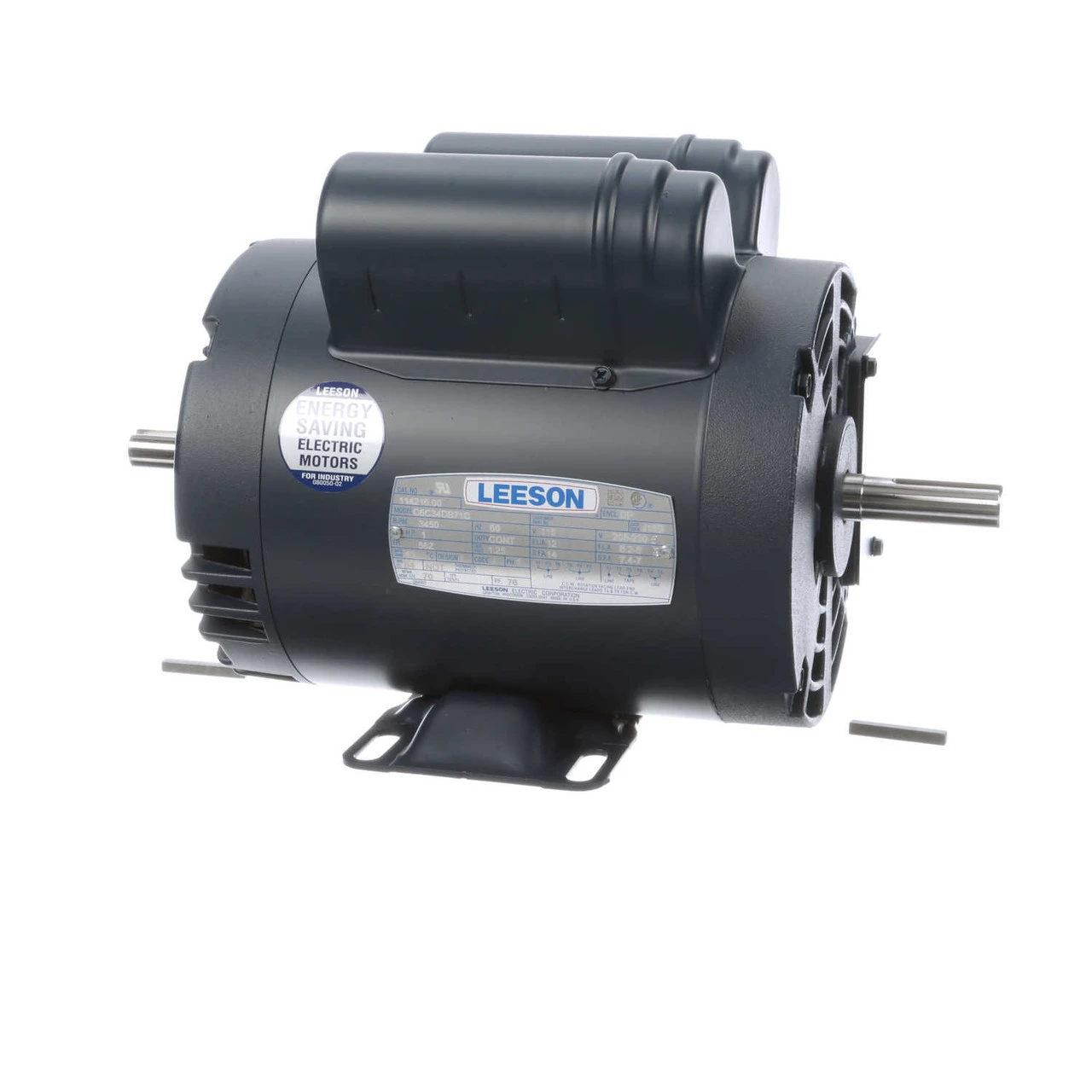

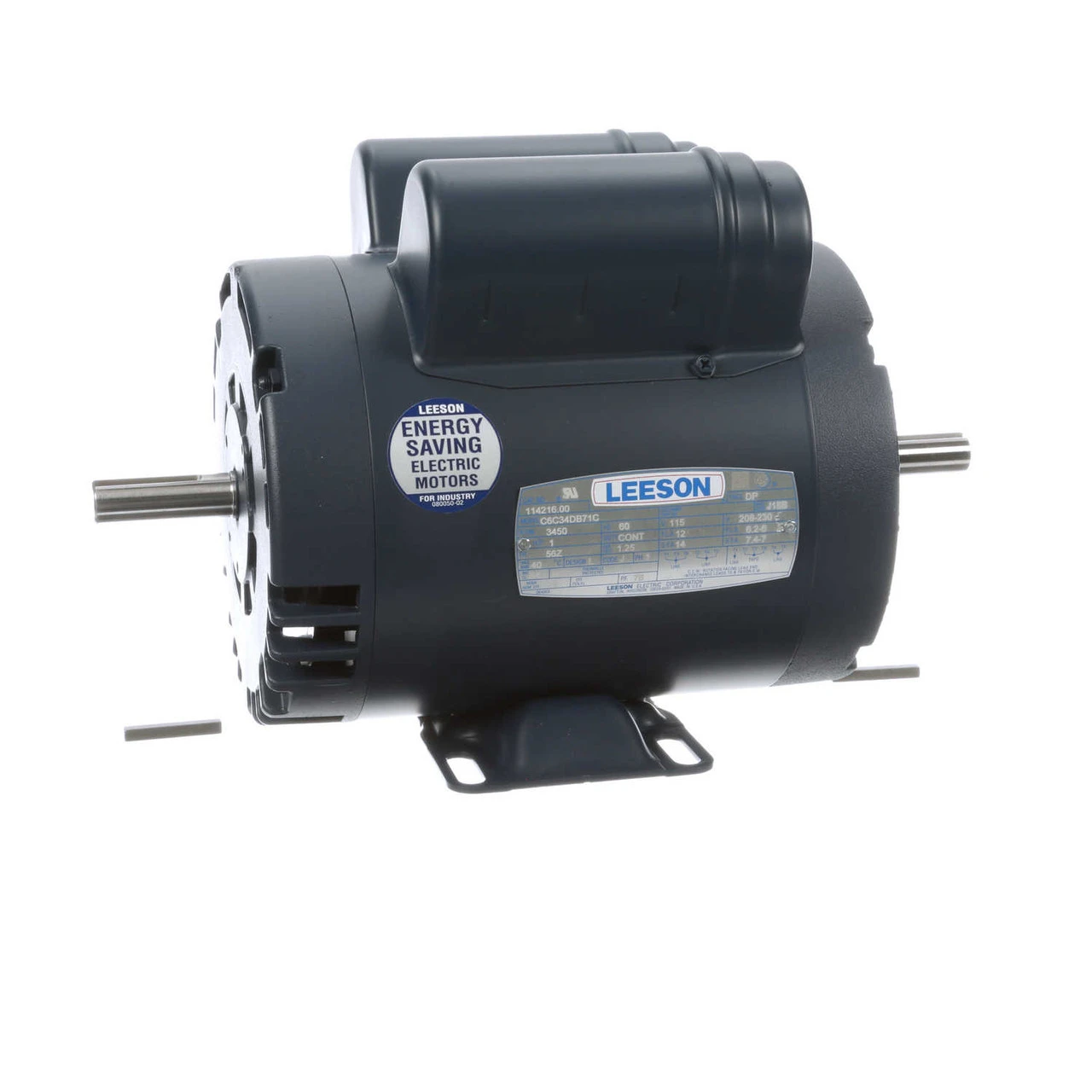

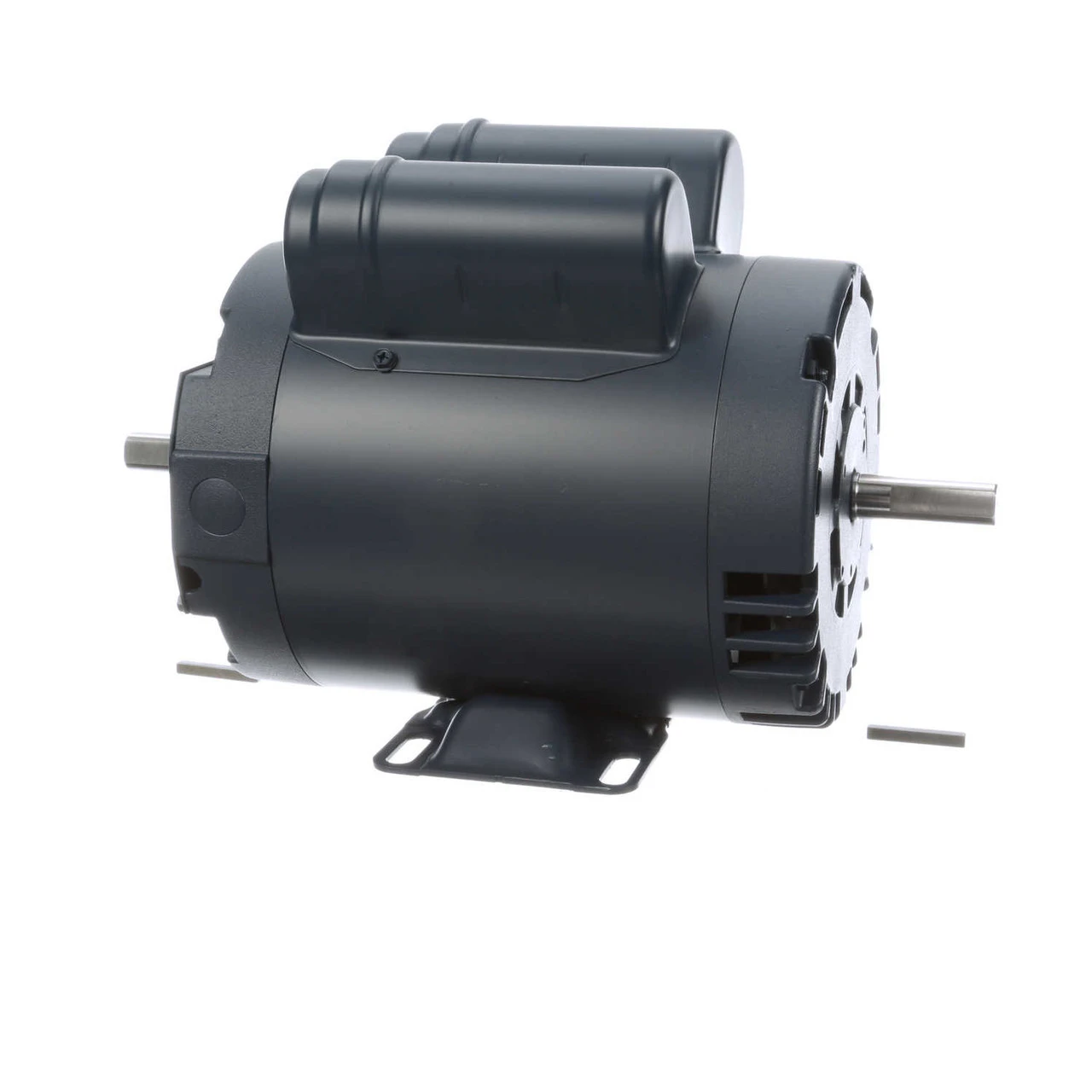

Woodworking/Powertool Motor. C6C34DB71C, 114216.00
