Name: 116482.00 Leeson Extreme Duck 1 1/2 Hp 3600 RPM 115/208-230V 3-Phase 56HC Frame TEFC (base) Motor
SKU: ZWXLY 1698655051
Availability: InStock

Sale!

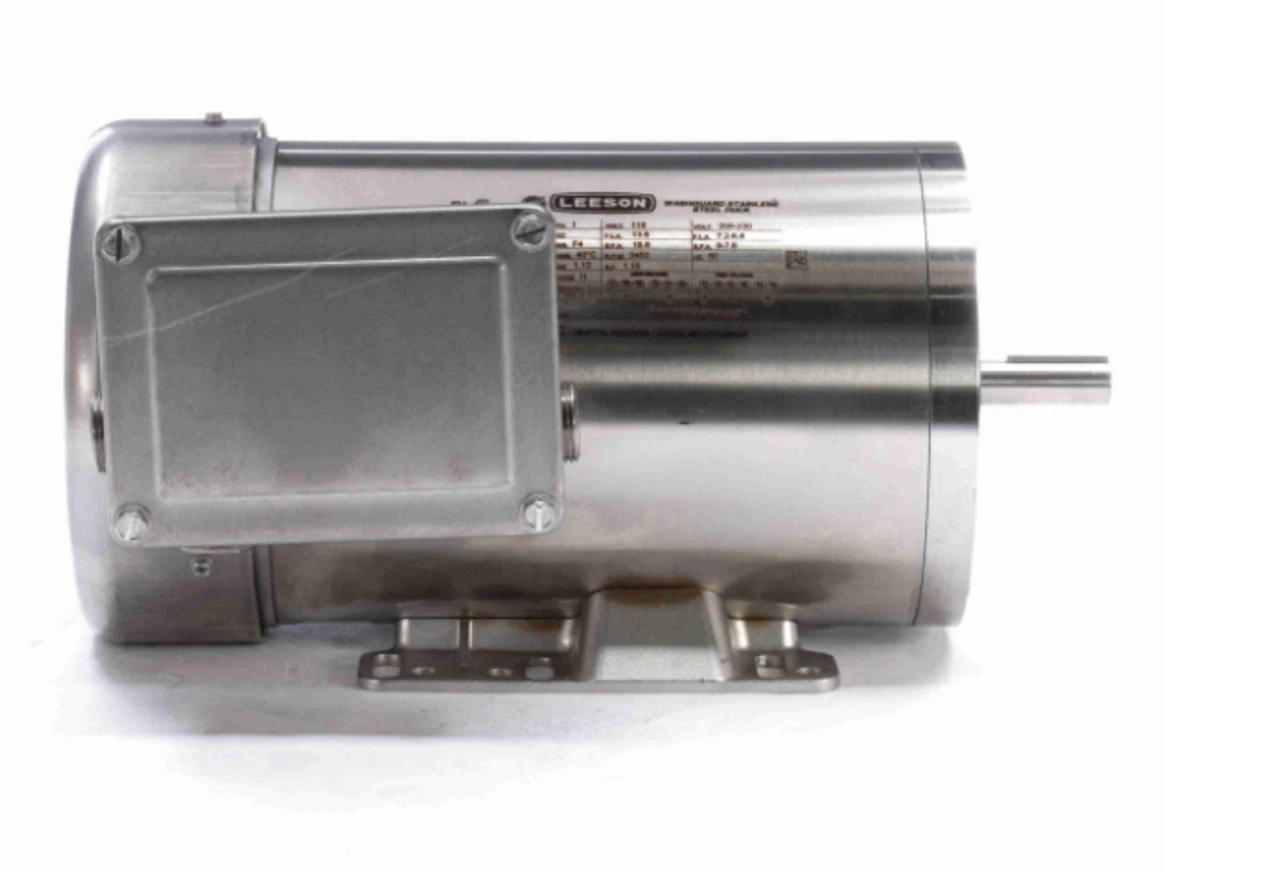

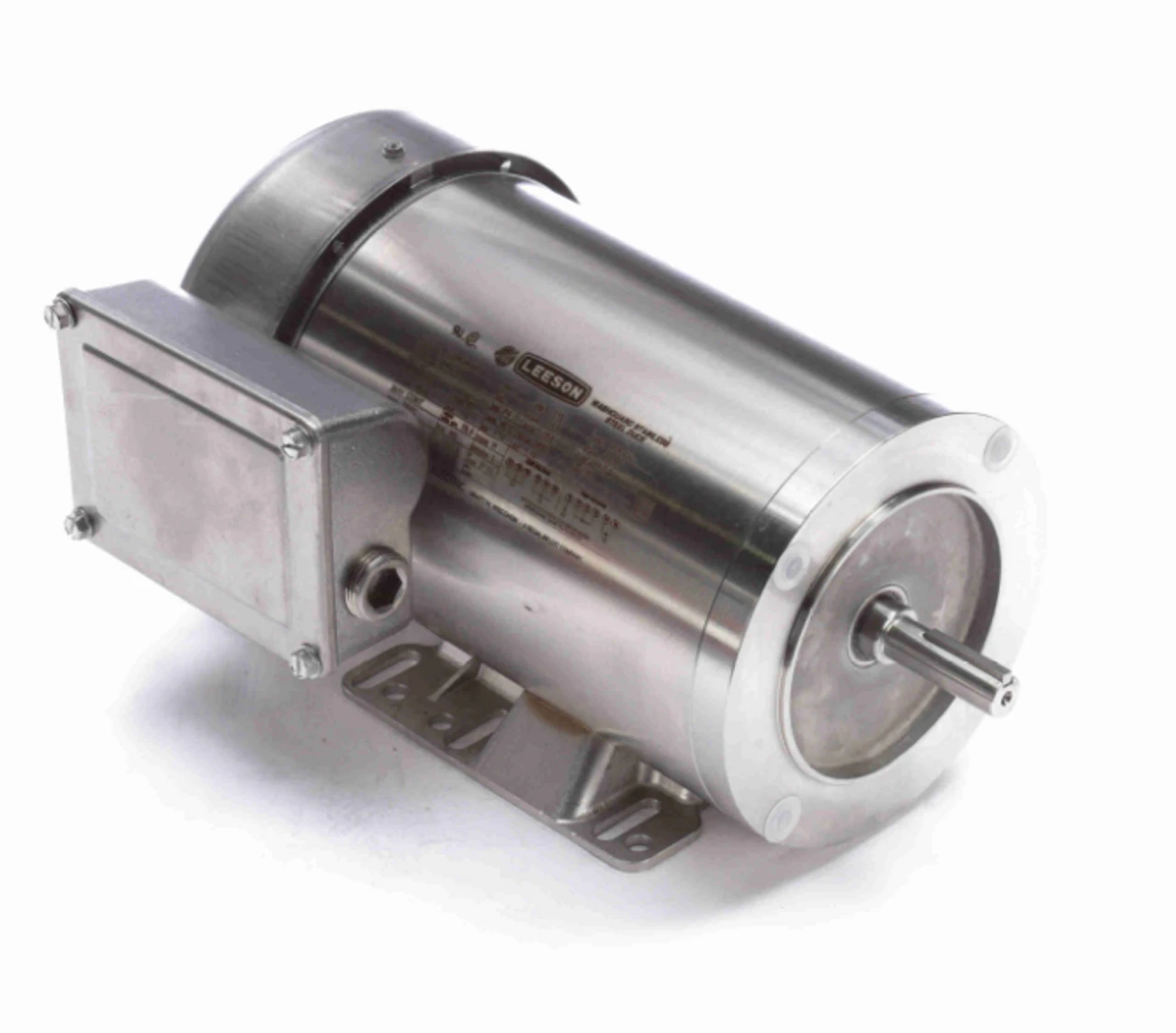

116482.00 Leeson Extreme Duck 1 1/2 Hp 3600 RPM 115/208-230V 3-Phase 56HC Frame TEFC (base) Motor

116482.00 Leeson Extreme Duck 1 1/2 Hp 3600 RPM 115/208-230V 3-Phase 56HC Frame TEFC (base) Motor - Image 2

116482.00 Leeson Extreme Duck 1 1/2 Hp 3600 RPM 115/208-230V 3-Phase 56HC Frame TEFC (base) Motor - Image 3

Original price was: $351.00.Current price is: $97.99.

SKU: ZWXLY 1698655051 Categories: Electric Motors, Leeson/Marathon Electric Motors Tag: Nidec

Multiple payment methods, 100% payment security
Quality at its Finest
Uncompromising quality, every time.
Get Quality, Get More

Description
Reviews (0)

1 1/2 hp 3600 RPM, 13.6/7.2-6.8 amps 115/208-230 Volts 60 Hz. Three Phase
NEMA 56HC frame, C-face, Stainless Steel Keyed Shaft 5/8″ Diameter x 1 7/8″
Service Factor: 1.15, Overload protection = None
Rigid Base, Reversible, Ball Bearings, Class F Insulation
1 Year Manufacture Warranty,

Stainless Steel wash-down motors are use in applications involving challenging caustic environments. This is a three phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8″ on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 116482.00
