Name: 119492.00 Leeson Extreme Duck 1 Hp 1200 RPM 230/460V 3-Phase 56HC Frame TEFC (base) Motor
SKU: ZWXLY 1698655144
Availability: InStock

Sale!

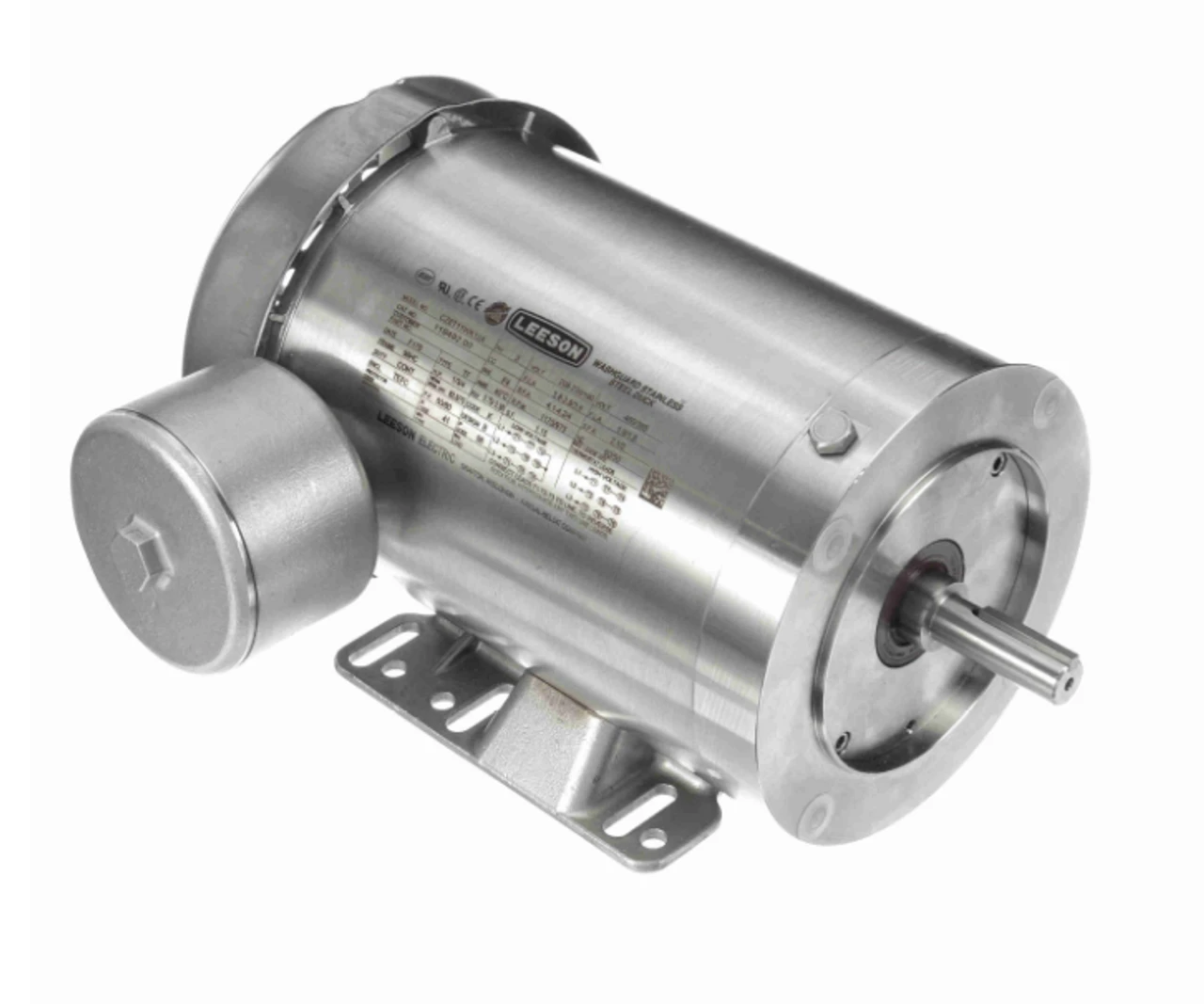

119492.00 Leeson Extreme Duck 1 Hp 1200 RPM 230/460V 3-Phase 56HC Frame TEFC (base) Motor

119492.00 Leeson Extreme Duck 1 Hp 1200 RPM 230/460V 3-Phase 56HC Frame TEFC (base) Motor - Image 2

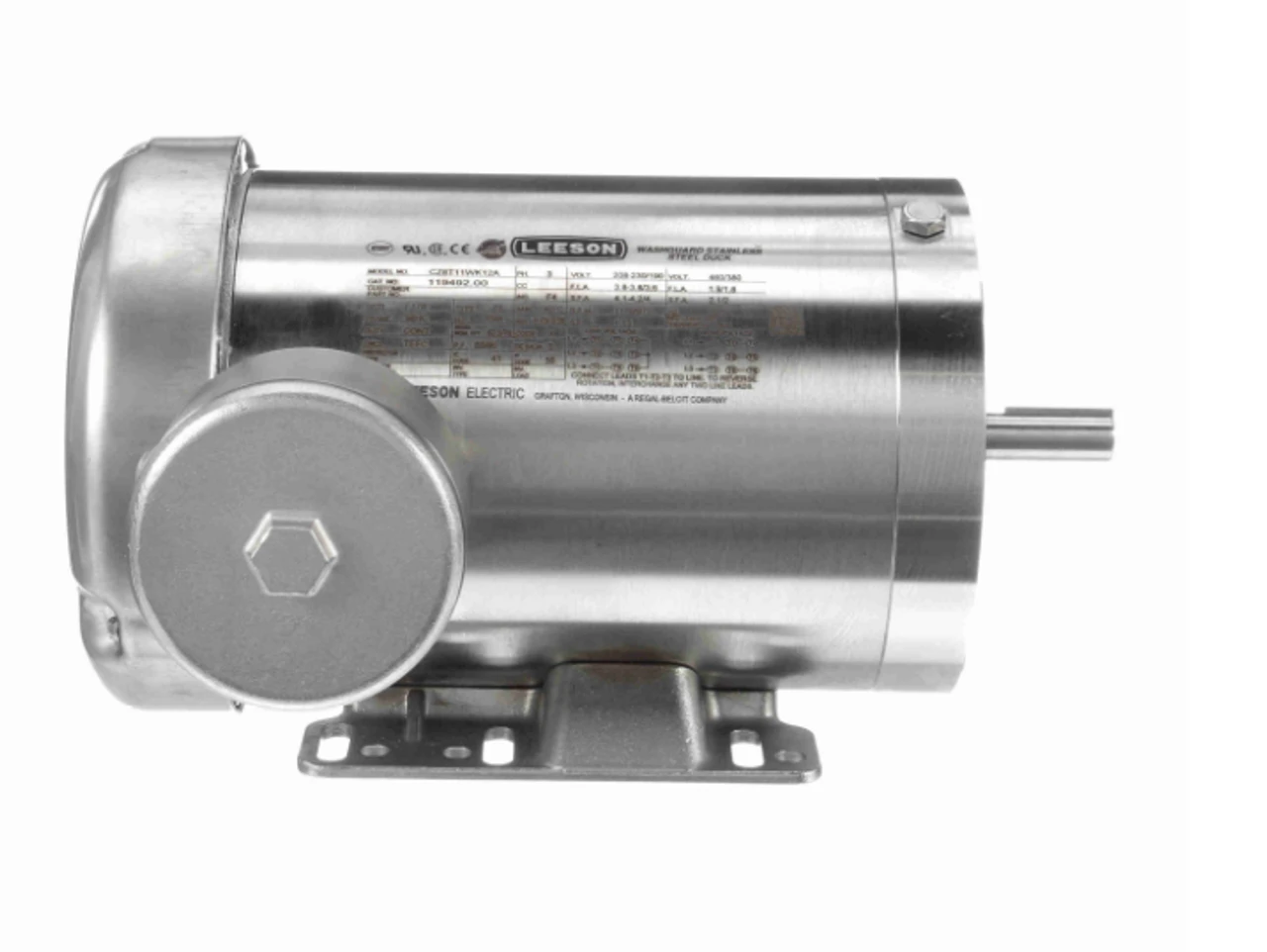

119492.00 Leeson Extreme Duck 1 Hp 1200 RPM 230/460V 3-Phase 56HC Frame TEFC (base) Motor - Image 3

Original price was: $398.00.Current price is: $97.99.

SKU: ZWXLY 1698655144 Category: Electric Motors Tag: Leeson/Marathon

Multiple payment methods, 100% payment security
Quality at its Finest
Uncompromising quality, every time.
Get Quality, Get More

Description
Reviews (0)

1 hp 1200 RPM, 3.8-3.8/1.9 amps 208-230/460 Volts 60 Hz. Three Phase
NEMA 56HC frame, C-face, Stainless Steel Keyed Shaft 5/8″ Diameter x 1 7/8″
Service Factor: 1.15, Overload protection = None
Rigid Base, Reversible, Ball Bearings, Class F Insulation
1 Year Manufacture Warranty

Stainless Steel wash-down motors are use in applications involving challenging caustic environments. This is a three phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8″ on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 119492.00
