Name: 120998.00 Leeson | 4 Hp 3450 RPM Delta Unisaw Electric Motor 230 Volts
SKU: ZWXLY 1698666562
Availability: InStock

Sale!

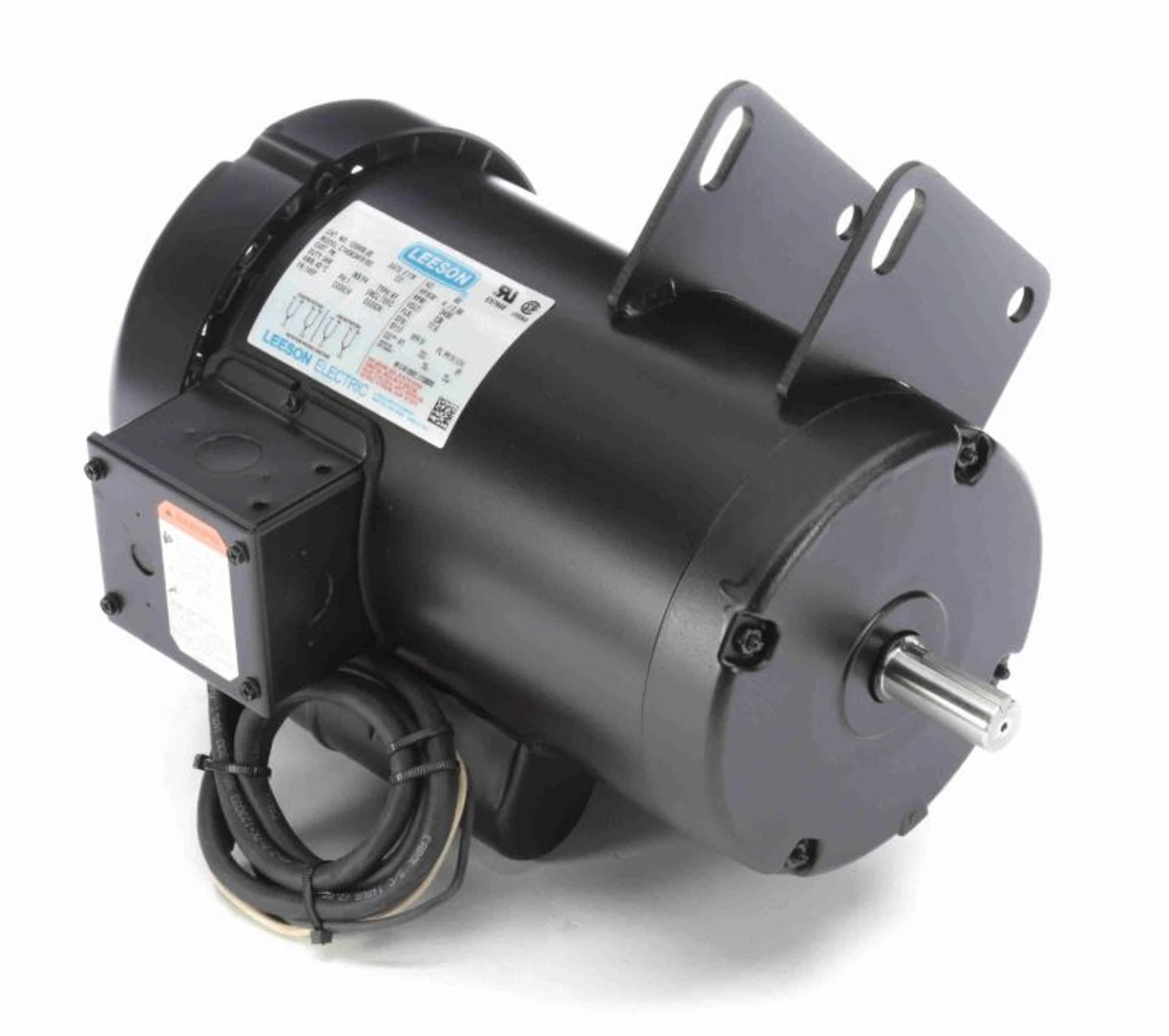

120998.00 Leeson | 4 Hp 3450 RPM Delta Unisaw Electric Motor 230 Volts

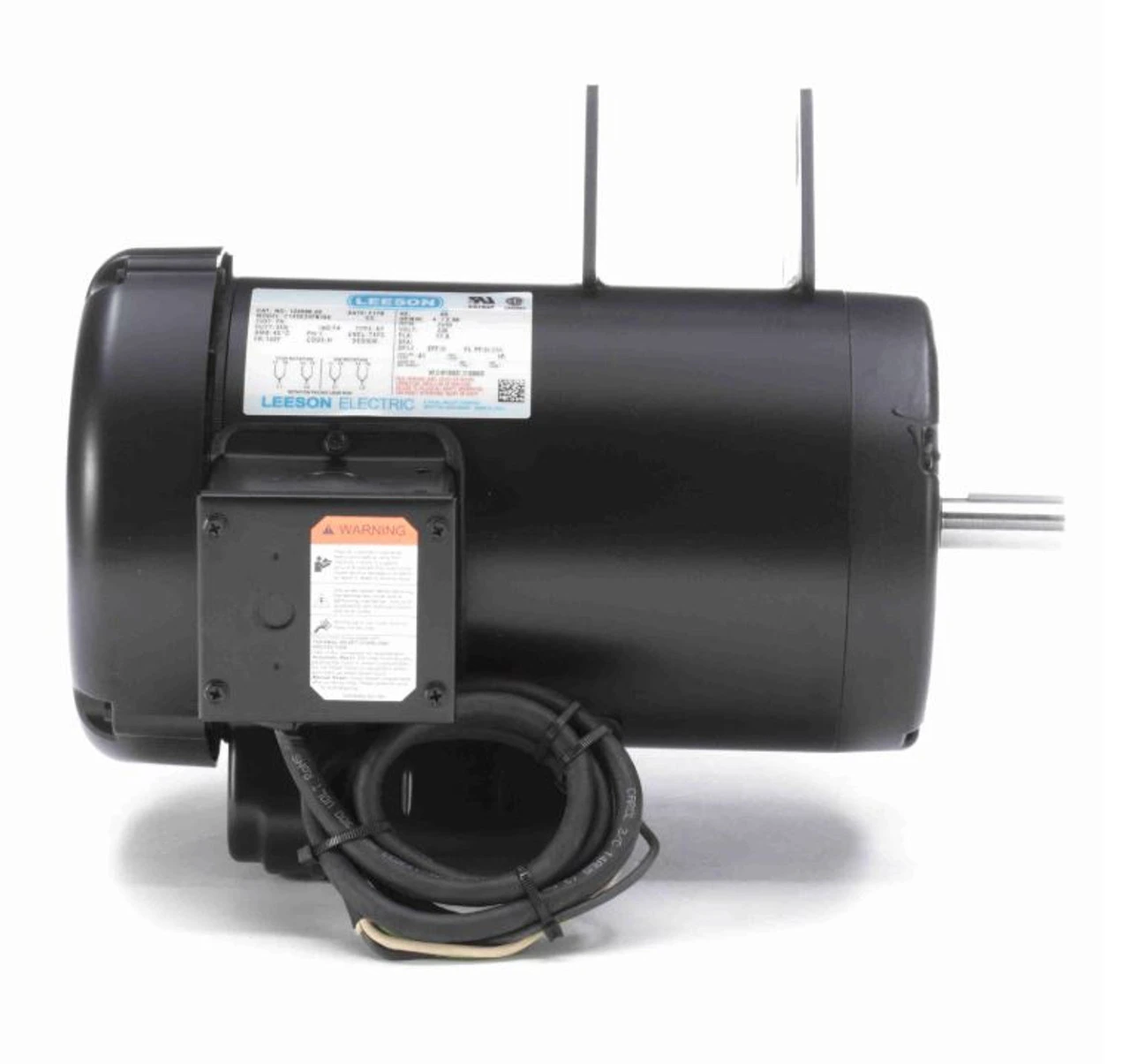

120998.00 Leeson | 4 Hp 3450 RPM Delta Unisaw Electric Motor 230 Volts - Image 2

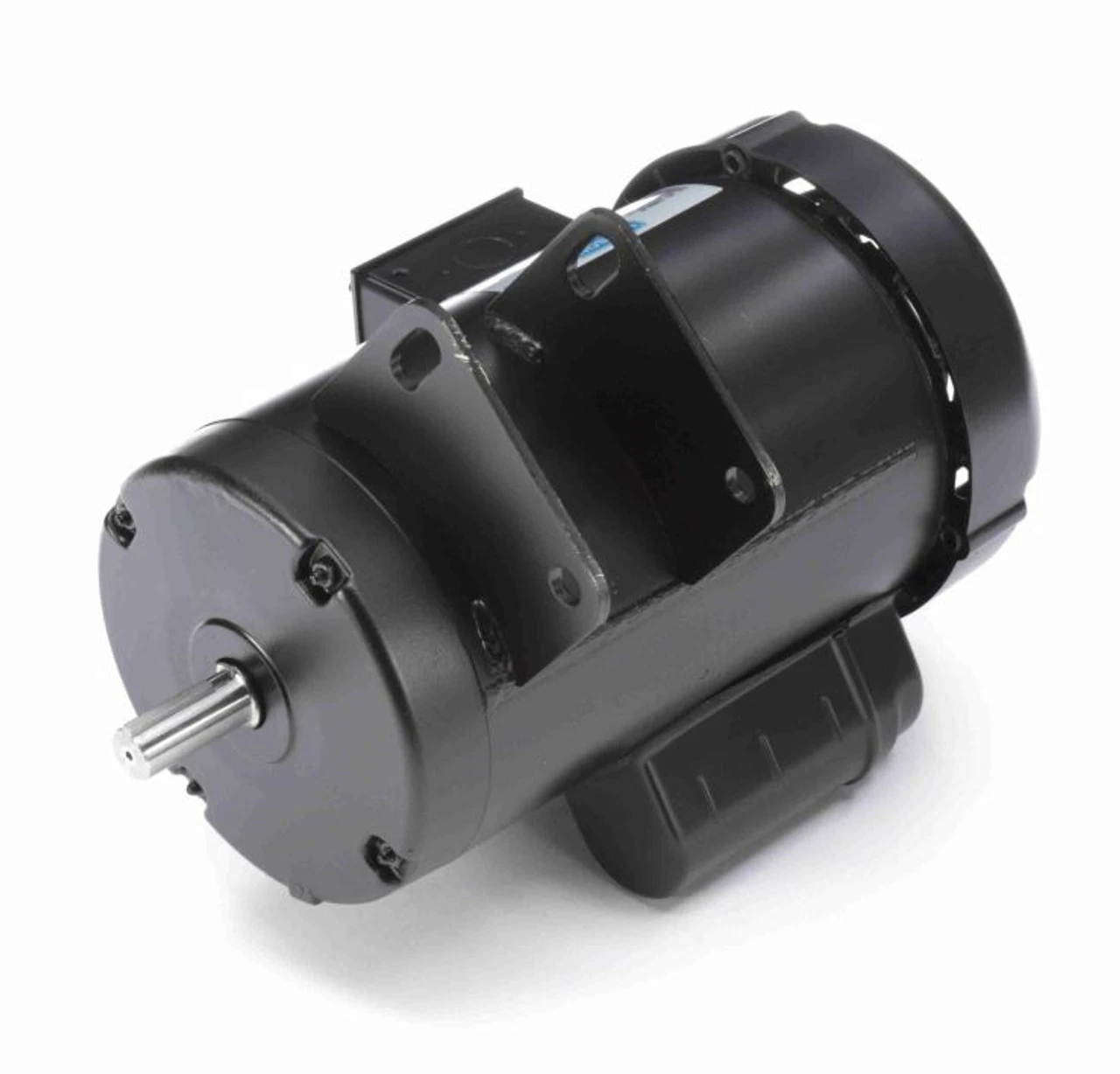

120998.00 Leeson | 4 Hp 3450 RPM Delta Unisaw Electric Motor 230 Volts - Image 3

120998.00 Leeson | 4 Hp 3450 RPM Delta Unisaw Electric Motor 230 Volts - Image 4

Original price was: $329.00.Current price is: $95.99.

SKU: ZWXLY 1698666562 Categories: Electric Motors, Woodworking Motors Tag: Leeson

Multiple payment methods, 100% payment security
Quality at its Finest
Uncompromising quality, every time.
Get Quality, Get More

Description
Reviews (0)

DELTA UNISAW REPLACEMENT MOTOR

4 hp 3450 RPM, 17.6 amps, 230V 60hz.; Single Phase
Shaft Size: 3/4″ Diameter x 1-3/4″ Length
Supplied with 54″ Electric cord
Totally Enclosed Fan Cooled
Electrically Reversible
145Y Frame Specialty Mounting Bracket
Overload Protection = None
Ball Bearings, Service Factor 1.0, Class F Insulation
Overall Motor Length = 13.69 inches
1 year manufacture warranty

Special Mounting:

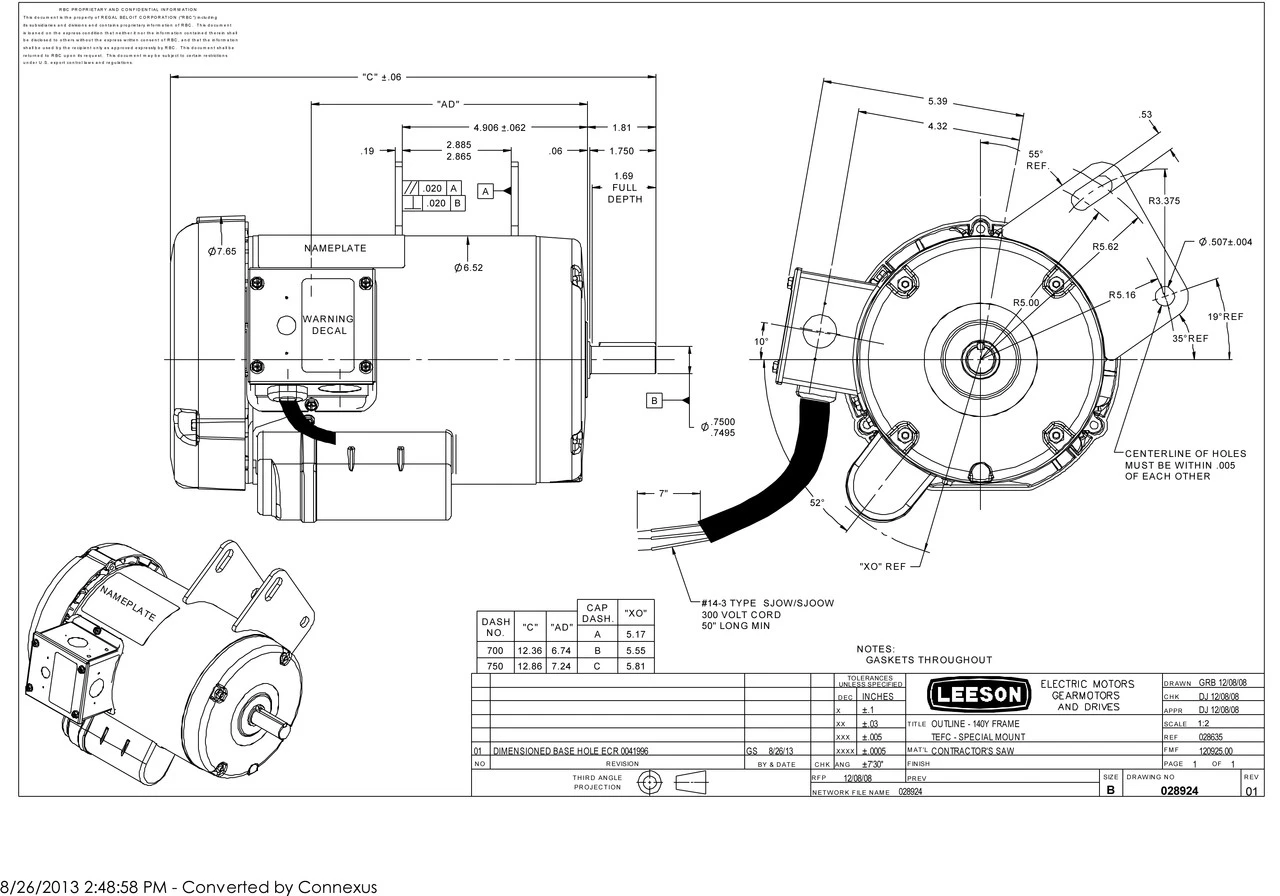

Motor pivots on rod for belt tensioning. We are unsure if this is for a right or left tilt saw, please check the dimensional diagram to make sure the bracket is on the correct side for your saw.

Totally enclosed fan cooled motor produces extra high breakdown torques for maximum cutting power.
Wiring diagram on motor nameplate. Please double check motor connection before installation. Capacitor start/capacitor run for reduced amperage.

Leeson Model: C145K34FB16E
Leeson Catalog No. 120998.00
Dayton 1XEN2
