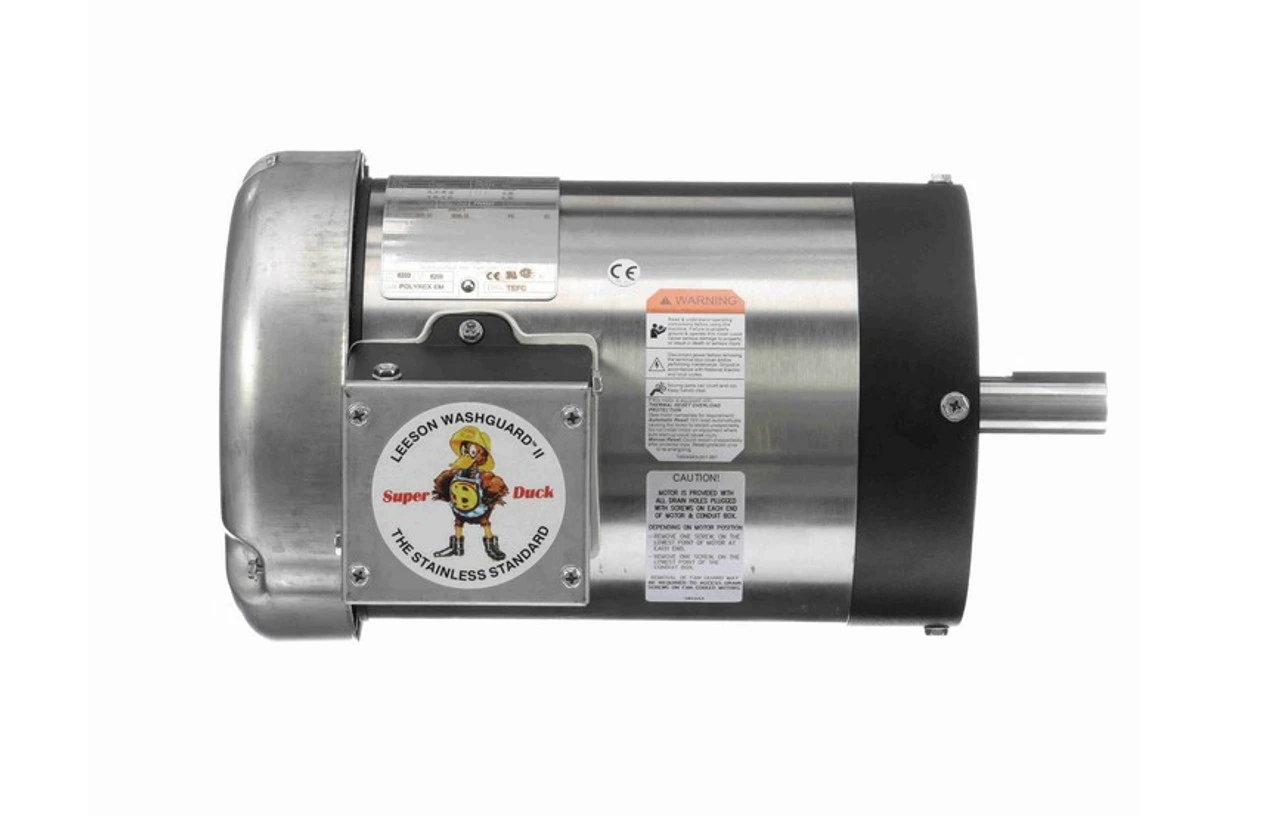

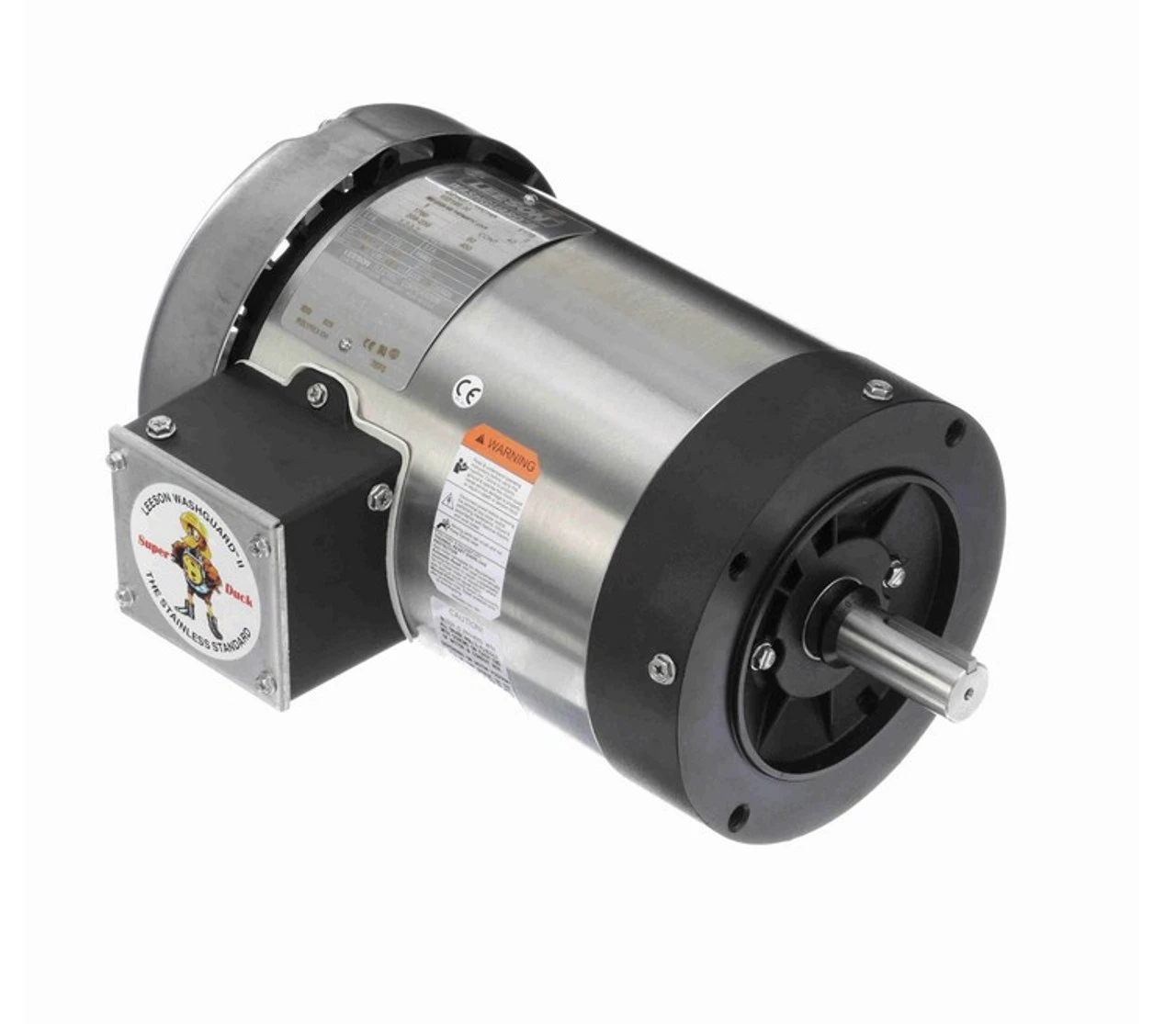

Name: 122198.00 Leeson 1 Hp 1800 RPM 208-230/460V 143TC Frame (No Base) TEFC 3-Phase Stainless-Steel Wash-Down Motor
SKU: ZWXLY 1698655472
Availability: InStock

Sale!

122198.00 Leeson 1 Hp 1800 RPM 208-230/460V 143TC Frame (No Base) TEFC 3-Phase Stainless-Steel Wash-Down Motor

122198.00 Leeson 1 Hp 1800 RPM 208-230/460V 143TC Frame (No Base) TEFC 3-Phase Stainless-Steel Wash-Down Motor - Image 2

122198.00 Leeson 1 Hp 1800 RPM 208-230/460V 143TC Frame (No Base) TEFC 3-Phase Stainless-Steel Wash-Down Motor - Image 3

Original price was: $365.00.Current price is: $98.99.

SKU: ZWXLY 1698655472 Categories: Electric Motors, Leeson/Marathon Electric Motors Tag: Leeson

Multiple payment methods, 100% payment security
Quality at its Finest
Uncompromising quality, every time.
Get Quality, Get More

Description
Reviews (0)

1 hp 1800 RPM, 3.2-3.2/1.6 amps 208-230/460 Volts 60 Hz. 3-Phase Motor
NEMA 143TC Frame Keyed Shaft 7/8″ Diameter x 2 1/4
Service Factor: 1.15, Overload Protection = Thermostat
No Base, Reversible, Ball Bearings – Class F Insulation
1 Year Manufacture Warranty

Stainless Steel Wash Duty motor with a C-face mount for use in wet and misty environments. Bolt holes are 3 3/4″ on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 122198.00
