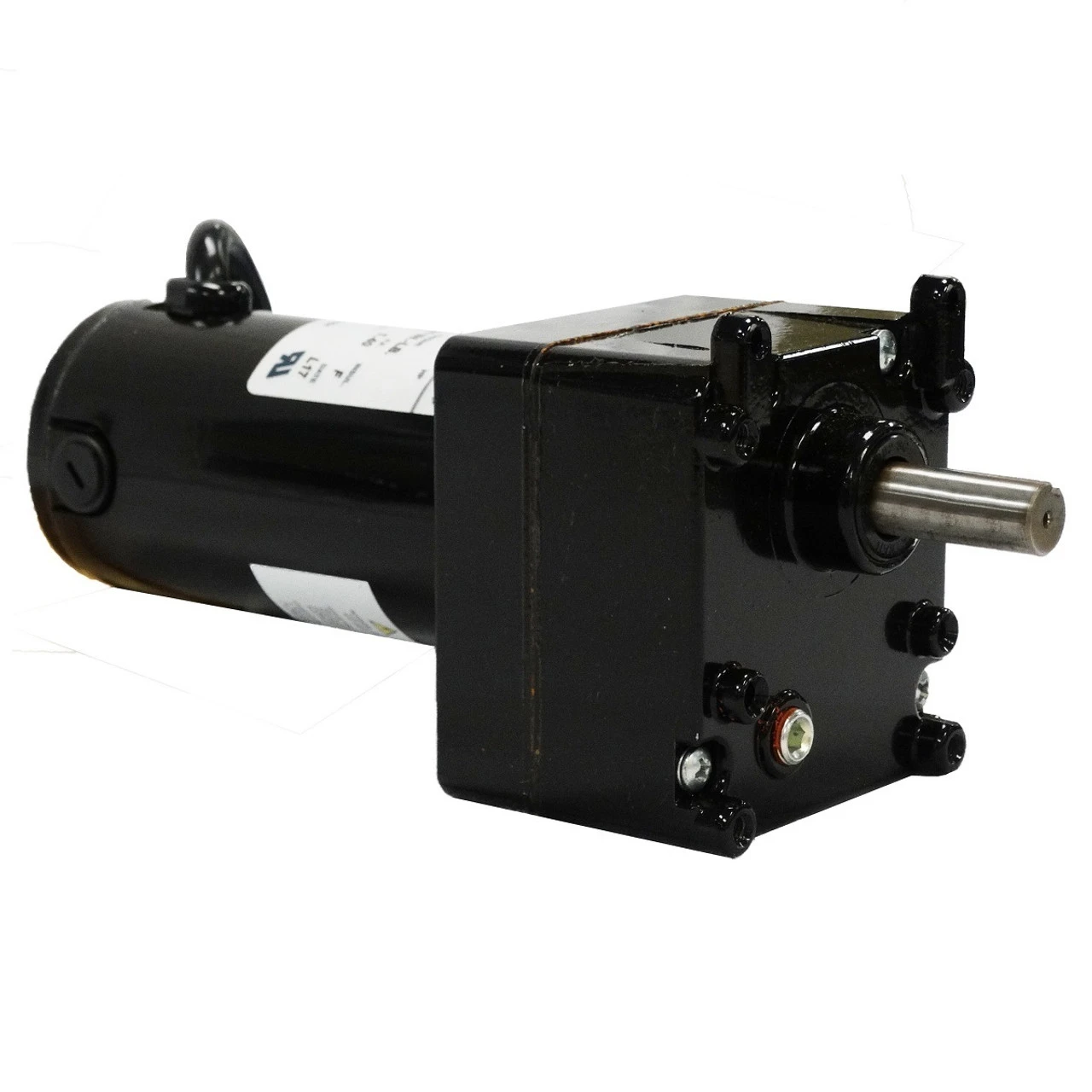

2423-302 RAE | Parallel Shaft Gearmotor – 90VDC, 65 RPM

Cross References:
Leeson M1125003
WEG GH1005
Baldor GPP230025
Bison 011-190-0025
RAE 2423302

This motor is a suggested replacement for the following motors. RPM, amps, shaft length, etc may not be exact, please double check your application and mounting requirement.

1/17HP, 65 RPM
90 Volts DC, 0.46 FLA
30 Output Torque (Inch pounds)
Shaft: 1/2 x 1.25 inch useable, keyed
Gear ratio: 31:1
Enclosure rating: IP55

The GL100 Series Gearbox, when matched with the appropriate RAE motor, is a versatile parallel shaft, medium torque gearmotor offering long gear life in a reduced noise design.
• Gearbox Designed to AGMA Standards
• Oil Filled
• Needle Bearings (Gearbox)
• High Energy Ceramic Magnets
• Double Shielded Ball Bearings (Motor)
• Dynamically Balanced Armature
• Reversible Design
• 36” Cord
• TENV Design
• Externally Replaceable Brushes
• Auto-Hook Tang Type Commutator
• Class “F” Insulation
