Original price was: $173.40.$96.99Current price is: $96.99.
- Multiple payment methods, 100% payment security
- Quality at its Finest
- Uncompromising quality, every time.
- Get Quality, Get More
- 3/4 HP 3450 RPM, 5.7 amps, 230V 60hz. Single Phase
- NEMA 48Y Open Frame, 1/2″ diameter stainless steel shaft with 3/8″ dia. end thread
- 1.0 Service Factor, Auto Overload Thermal Protection, Class F insulation
- Non-Reversible – CCW Rotation facing the shaft
- Rigid Base Mount, Ball Bearings, 3 1/2 shaft height

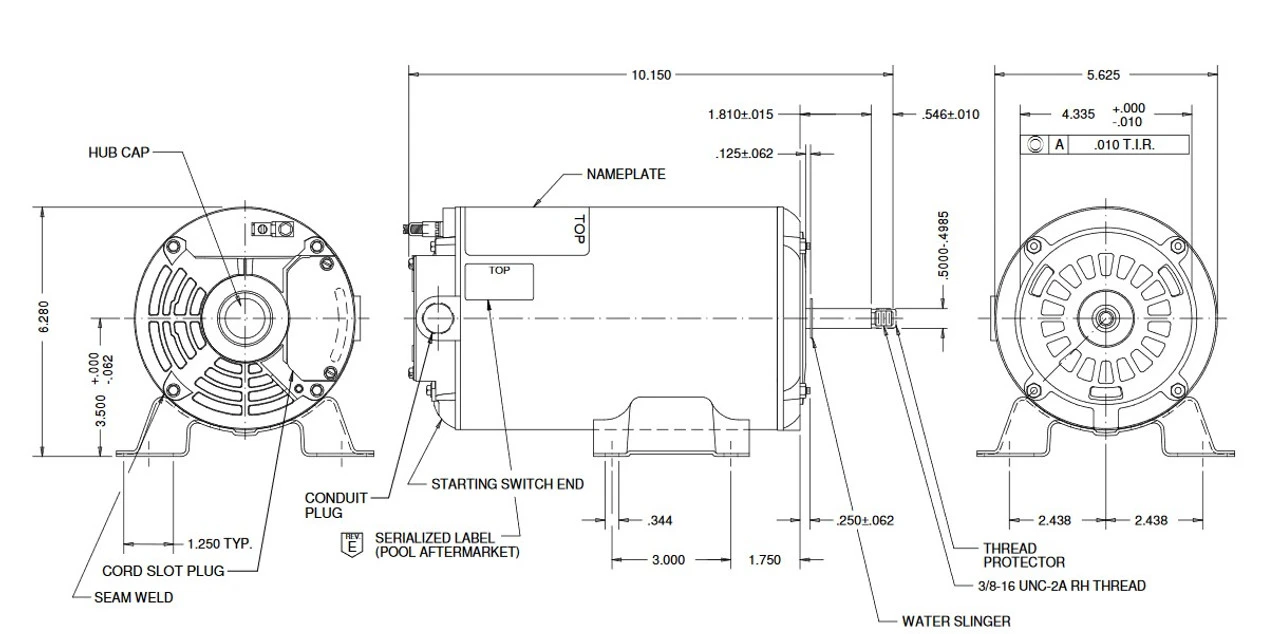

Above ground swimming pool and spa motors. 48Y frame motors thru bolt dimension is 5 1/8″ on center measured across the shaft. Wiring connection diagram on motor name plate. These motors are found on the Hayward Powerflo, Waterway, Aquaflo, Dynamo and many other above ground pool and spa pumps. 1 Year Manufacture Warranty. S055PWE7788013J
