Original price was: $335.20.$97.99Current price is: $97.99.
- Multiple payment methods, 100% payment security
- Quality at its Finest
- Uncompromising quality, every time.
- Get Quality, Get More
- 2 HP 3450/1725 RPM, 9.0 amps, 230V 60hz. Single Phase. Capacitor Start
- NEMA 56 Open Frame, 1/2″ diameter stainless steel shaft with 3/8″ dia. end thread
- 1.0 Service Factor, Auto Overload Thermal Protection, Class F insulation
- Non-Reversible – CCW Rotation facing the shaft
- Rigid Base Mount, Ball Bearings, Switch design, 3 1/2 shaft height

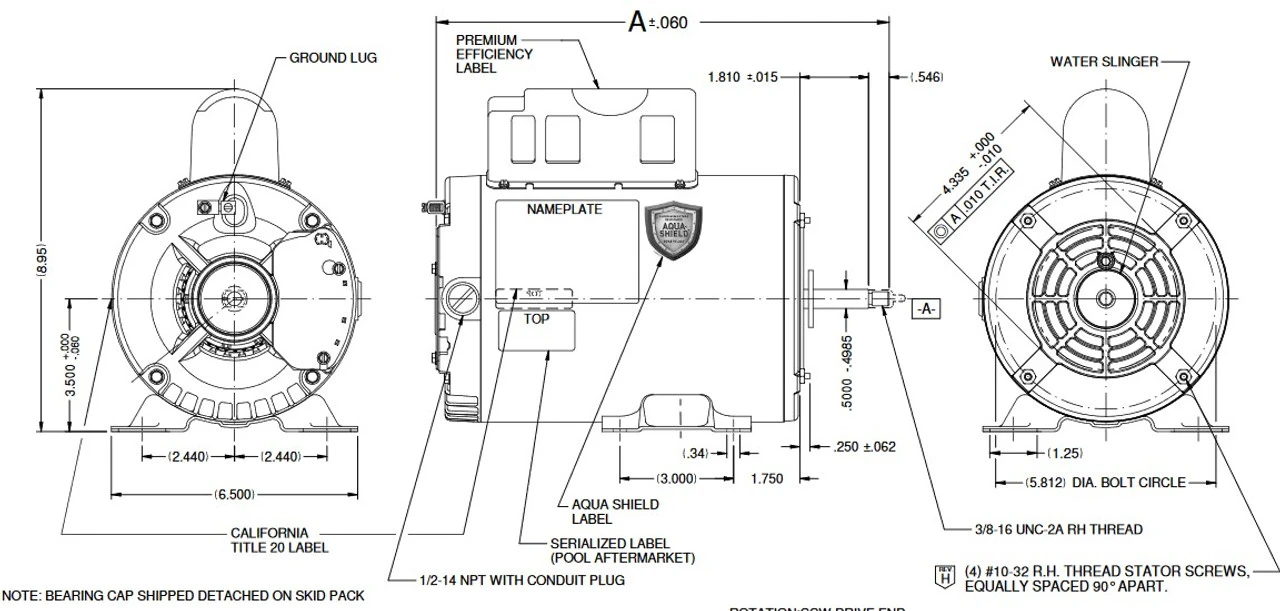

Above ground swimming pool and spa motors. 56 frame motors thru bolt dimension is 5 1/8″ on center measured across the shaft. Wiring connection diagram on motor name plate. These motors are found on the Hayward Powerflo, Waterway, Aquaflo, Dynamo and many other above ground pool and spa pumps. 1 Year Manufacture Warranty. R063DRW0291013J
Be the first to review “ASB503 US Motors 2 Hp 3450/1725 RPM 56 Frame 230V Thru-Bolt Pool-Spa Motor”
