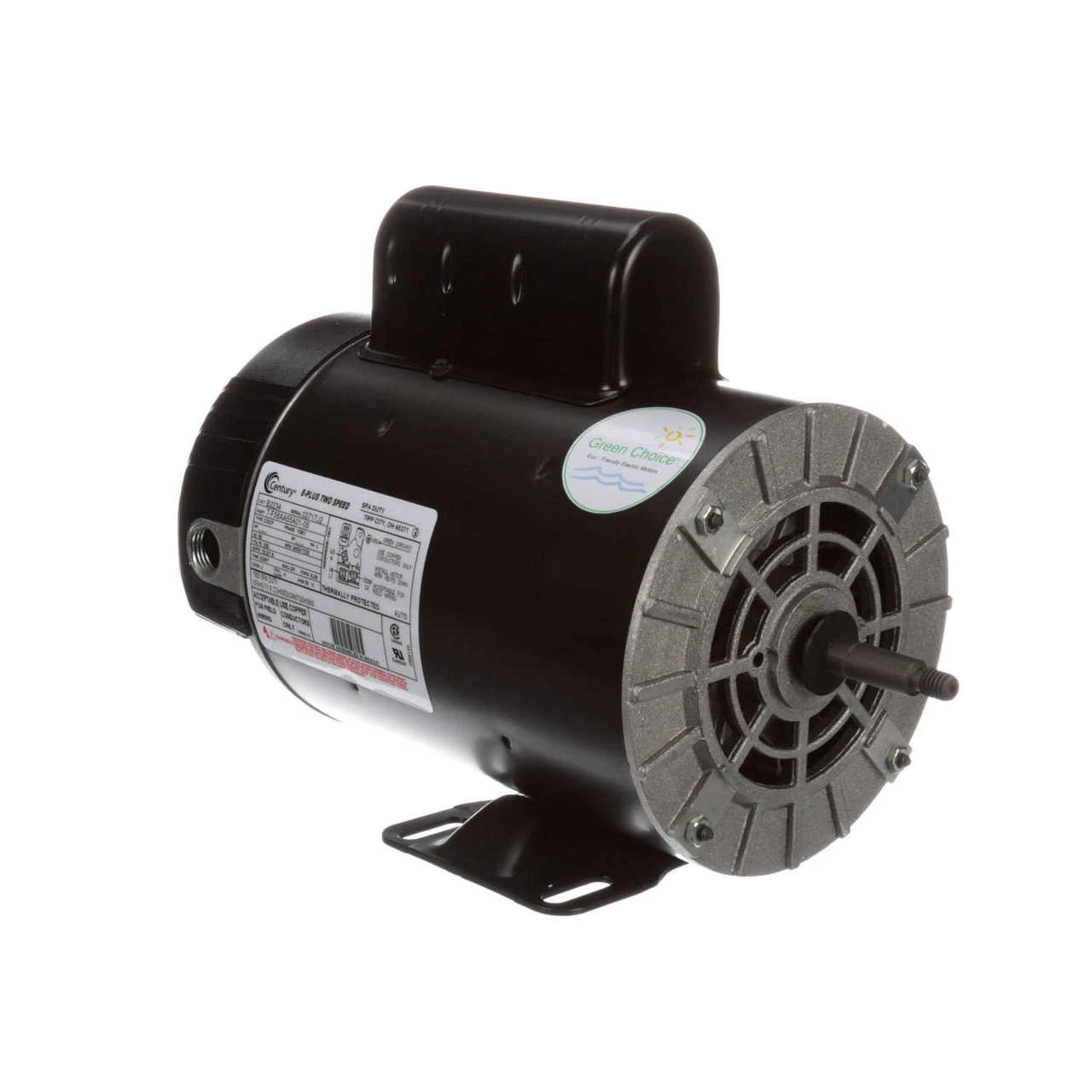

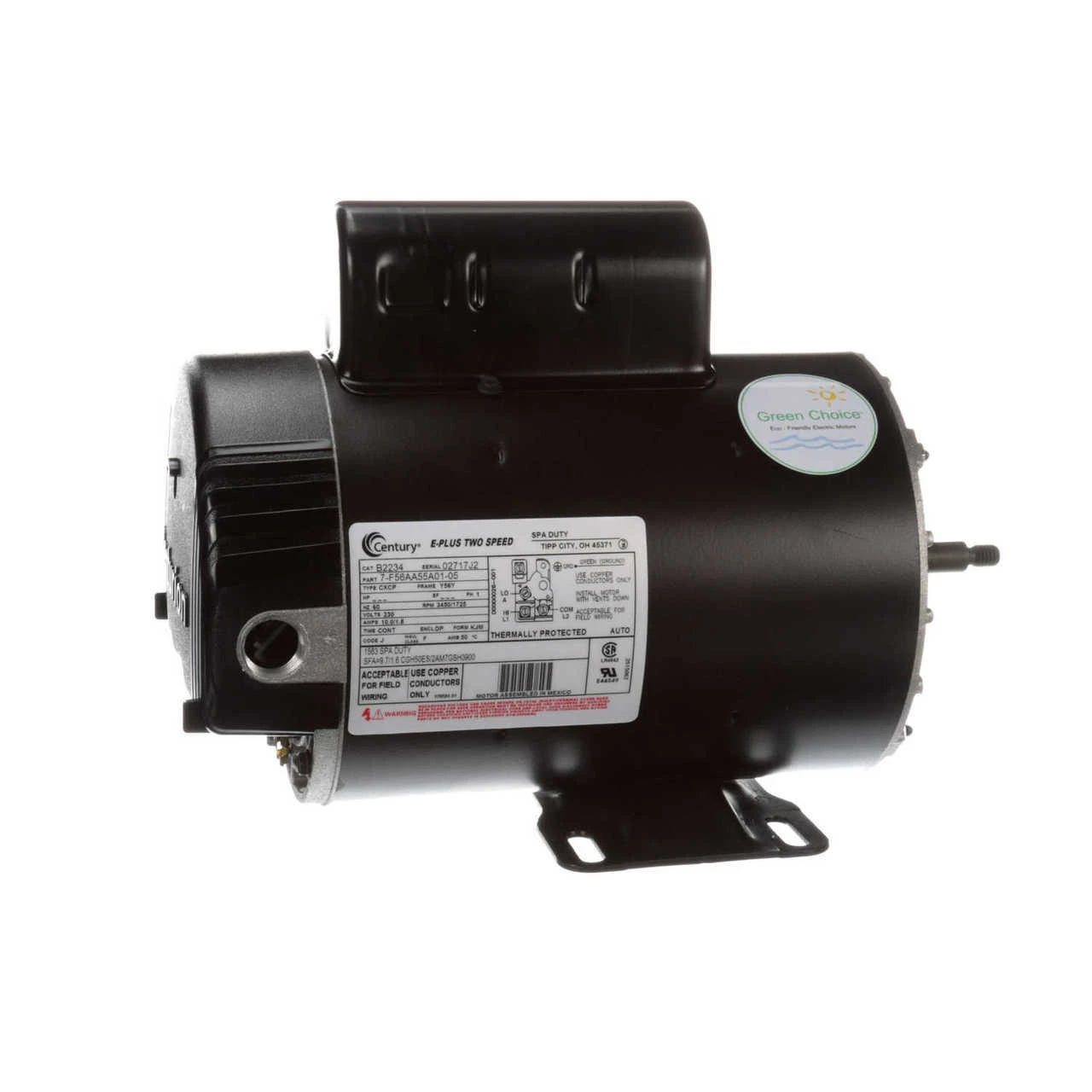

Name: B2234 Century 3 Hp 3450/1725 RPM 56Y Frame 230V 2-Speed Pool &amp; Spa Electric Motor Century # B2234
SKU: ZWXLY 1698654830
Availability: InStock

Sale!

B2234 Century 3 Hp 3450/1725 RPM 56Y Frame 230V 2-Speed Pool & Spa Electric Motor Century # B2234

B2234 Century 3 Hp 3450/1725 RPM 56Y Frame 230V 2-Speed Pool & Spa Electric Motor Century # B2234 - Image 2

B2234 Century 3 Hp 3450/1725 RPM 56Y Frame 230V 2-Speed Pool & Spa Electric Motor Century # B2234 - Image 3

B2234 Century 3 Hp 3450/1725 RPM 56Y Frame 230V 2-Speed Pool & Spa Electric Motor Century # B2234 - Image 4

B2234 Century 3 Hp 3450/1725 RPM 56Y Frame 230V 2-Speed Pool & Spa Electric Motor Century # B2234 - Image 5

Original price was: $312.00.Current price is: $96.99.

SKU: ZWXLY 1698654830 Category: Pool & Spa Motors Tag: Century Electric Motor

Multiple payment methods, 100% payment security
Quality at its Finest
Uncompromising quality, every time.
Get Quality, Get More

Description
Reviews (0)

3 HP 3450/1725 RPM, 10.0/1.8 amps, 230V 60hz.; 2-Speed
Auto Overload Protection
Non-Reversible -CCW Facing the Shaft; Ball Bearings
56Y Frame; Thru-Bolt mount -Rigid Base
One Year Manufacture Warranty

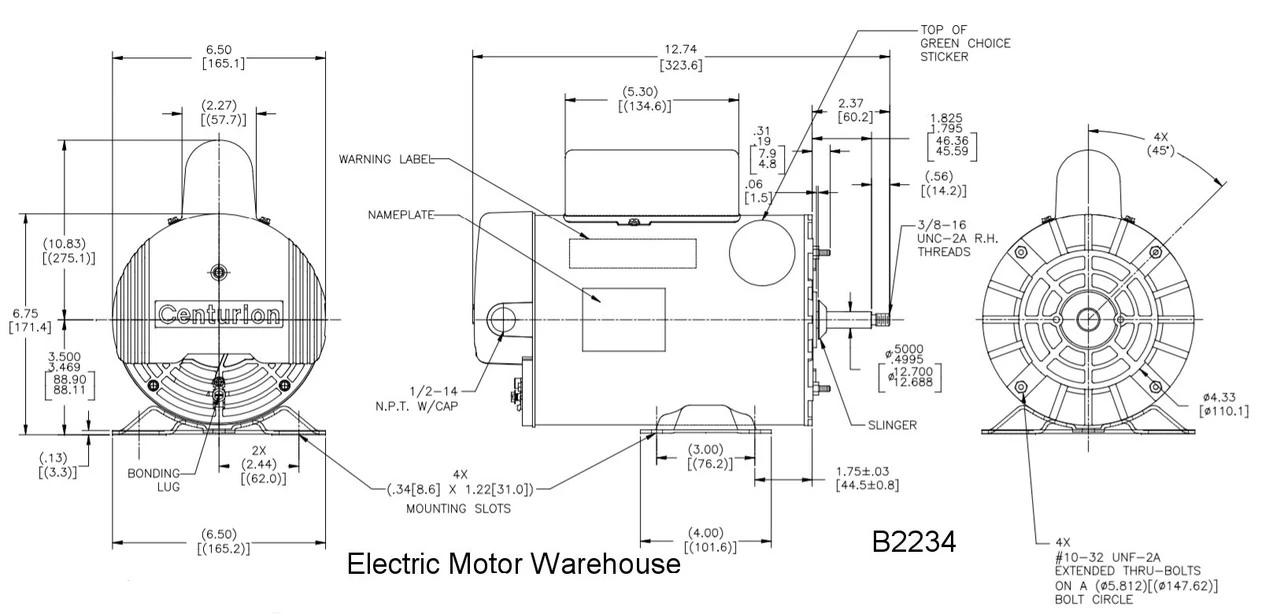

Above ground swimming pool and spa motors. These are called Thru-Bolt mount motors as the pump mounts to the face of the motor with the motor thru bolts. 56Y frame motors thru bolt dimension is 5 13/16″ on center measured across the shaft. Shaft is 1/2″ diameter with threads on end. Motor has flat-rigid base welded to motor case. Wiring connection diagram on motor name plate. These motors are found on the Waterway and many other above ground pool and spa pumps. 1 Year Manufacture Warranty. Replaces Century B234. US Electric Equivalent TT503, Dayton 16U414
