B813 Century 5 Hp (1 Speed) 230V 3600 RPM ODP 56HZ Frame Cap Start/Run Pressure Washer Motor

• 5 hp 3450 RPM, 22.0 amps, 230 Volts 60 Hz,
• Capacitor Start / Capacitor Run

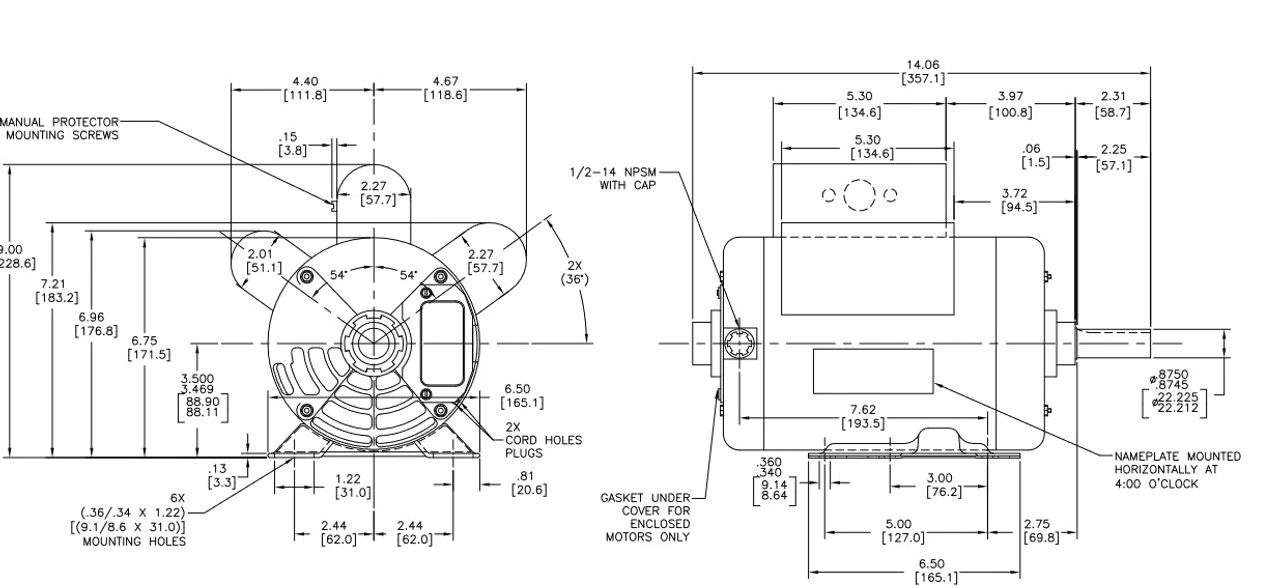

• NEMA 56HZ Frame, Shaft 2 1/4 x 7/8″ Diameter
• Shaft should be horizontal
• Service Factor = 1.0, Thermal Protection = Manual
• Rigid Base, Ball Bearings, Class B insulation
• Clockwise rotation facing shaft end
• ODP = Open Drip Proof
• 1 Year Manufacture Warranty
• Shaft height to center of shaft is 3.5″

For use on air compressors and pressure washer units.
Cross Ref: 7-164621-01
