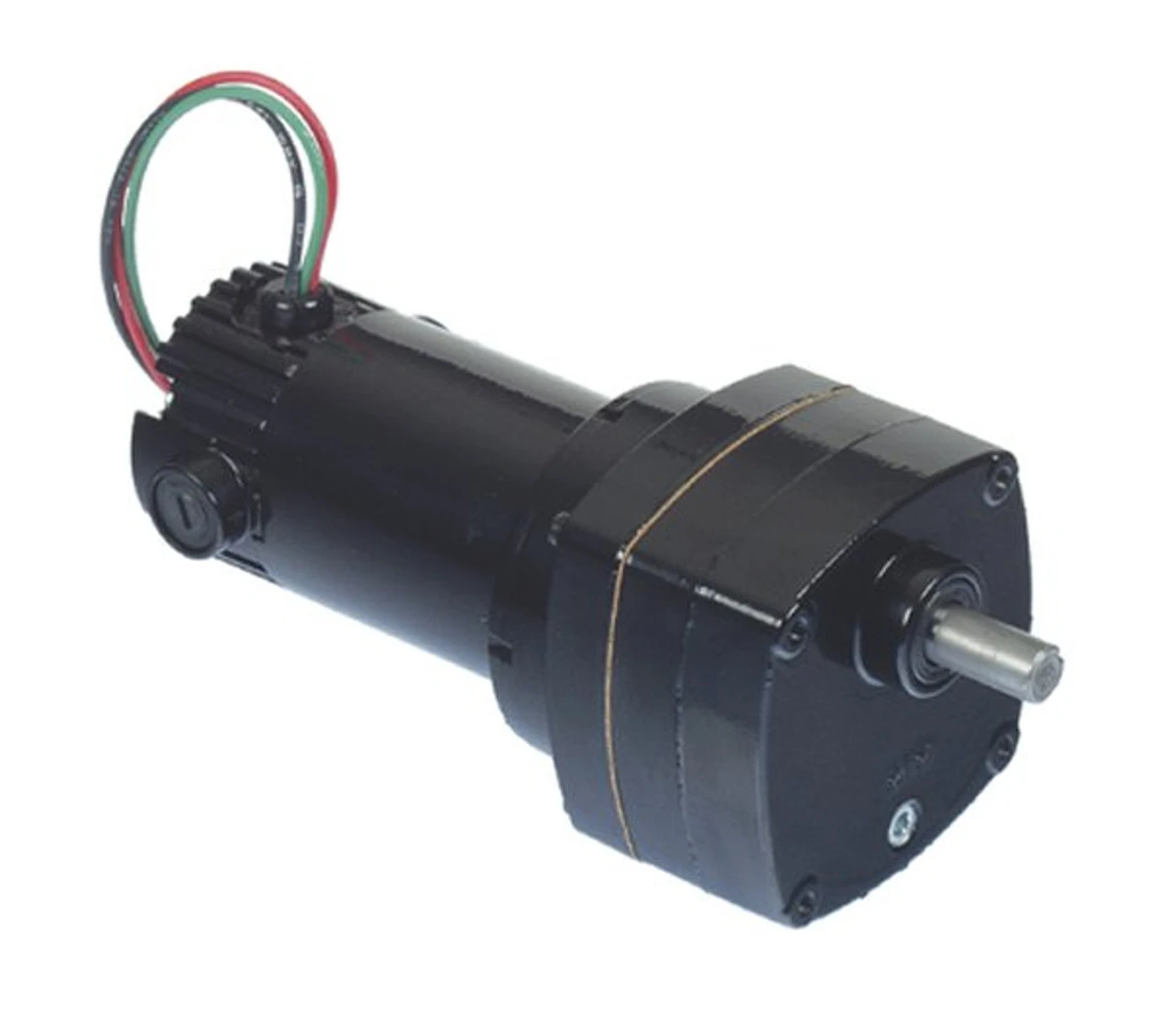

Bison 011-190-4025 Gear Motor 1/20 Hp, 71 RPM 24VDC

• 100 Series DC Parallel Shaft Gear Motor – Subject to factory availability-email or call for availability
• Torque 40 inch pounds
• Over Hung lbs. = 230
• Rotation = Reversible
• 1/20 hp, 71 RPM, 2.4 amps, 24 Volts DC
• TENV Enclosure, Keyed Shaft, Ball Bearings

Optional Accessories: P198-100-9111 Junction Box, P125-100-9998 Mounting Plate. Replacement Brush Set # P158-200-2615. Permanent Magnet motor, Insulation Class B; Finish: Powder-coat gloss black; Brushes: Replaceable; Gearhead Specifications: Housing – Precision machined die cast aluminum; Shafts – Hardened steel; Gearing: Hardened Steel worm. Forged bronze gear; Lubrication: Lifetime oil bath, sealed and gasketed; Any angle mount; Bearings – Ball and Needle Bearings. Can use with Leeson speed control 175290.
