Original price was: $329.00.$96.99Current price is: $96.99.
- Multiple payment methods, 100% payment security
- Quality at its Finest
- Uncompromising quality, every time.
- Get Quality, Get More

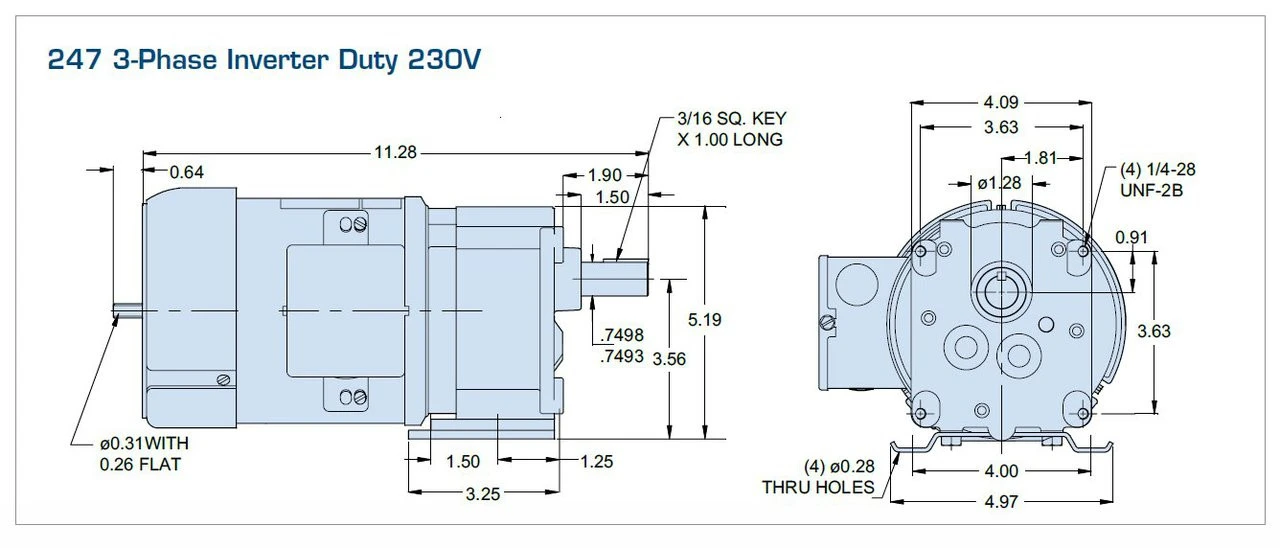

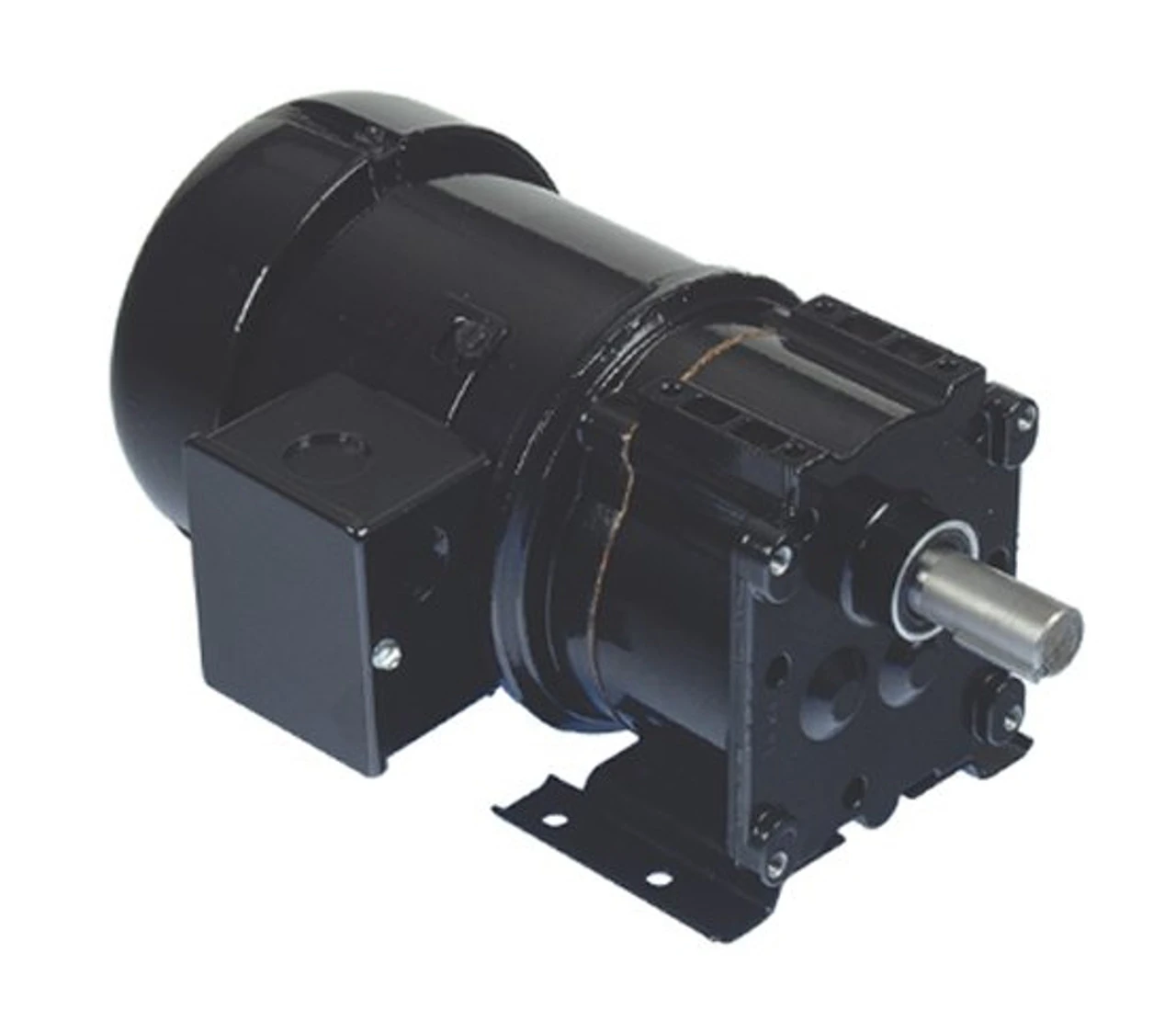

- 247 Series AC Parallel Shaft Gear Motor – Subject to factory availability-email or call for availability
- Torque 272 inch pounds; Over Hung lbs. = 273
- Rotation = Reversible; Junction Box Included
- 1/4 hp, 30 RPM, .08 amps; 230V; 6-90 hz.; Three Phase
- TEFC Enclosure, Keyed Shaft, Ball Bearings
Motor: Meets NEMA MG 1 sct 31; Powder-coat gloss black; Motor Bearings: Double shielded ball; Thermostat: Signal type; closed. UL/CUL recognized. Gearhead Specifications: Precision machined die cast aluminum ; Lubrication: Lifetime oil bath; Hardened steel shafts; Mounting: Face (any angle) or footplate. Gearing: AGMA class 9 heat treated steel, 1st stage helical metal, balance spur metal. Bearings: Needle with thrust ball. Suggested replacement reference for: Dayton 4ZJ51. One Year Manufacture Warranty. Opening motor voids the warranty.
Be the first to review “Bison 017-247-0058 Inverter Duty Gear Motor 30 RPM 1/4 Hp 230V”
