Original price was: $397.00.$99.99Current price is: $99.99.
- Multiple payment methods, 100% payment security
- Quality at its Finest
- Uncompromising quality, every time.
- Get Quality, Get More

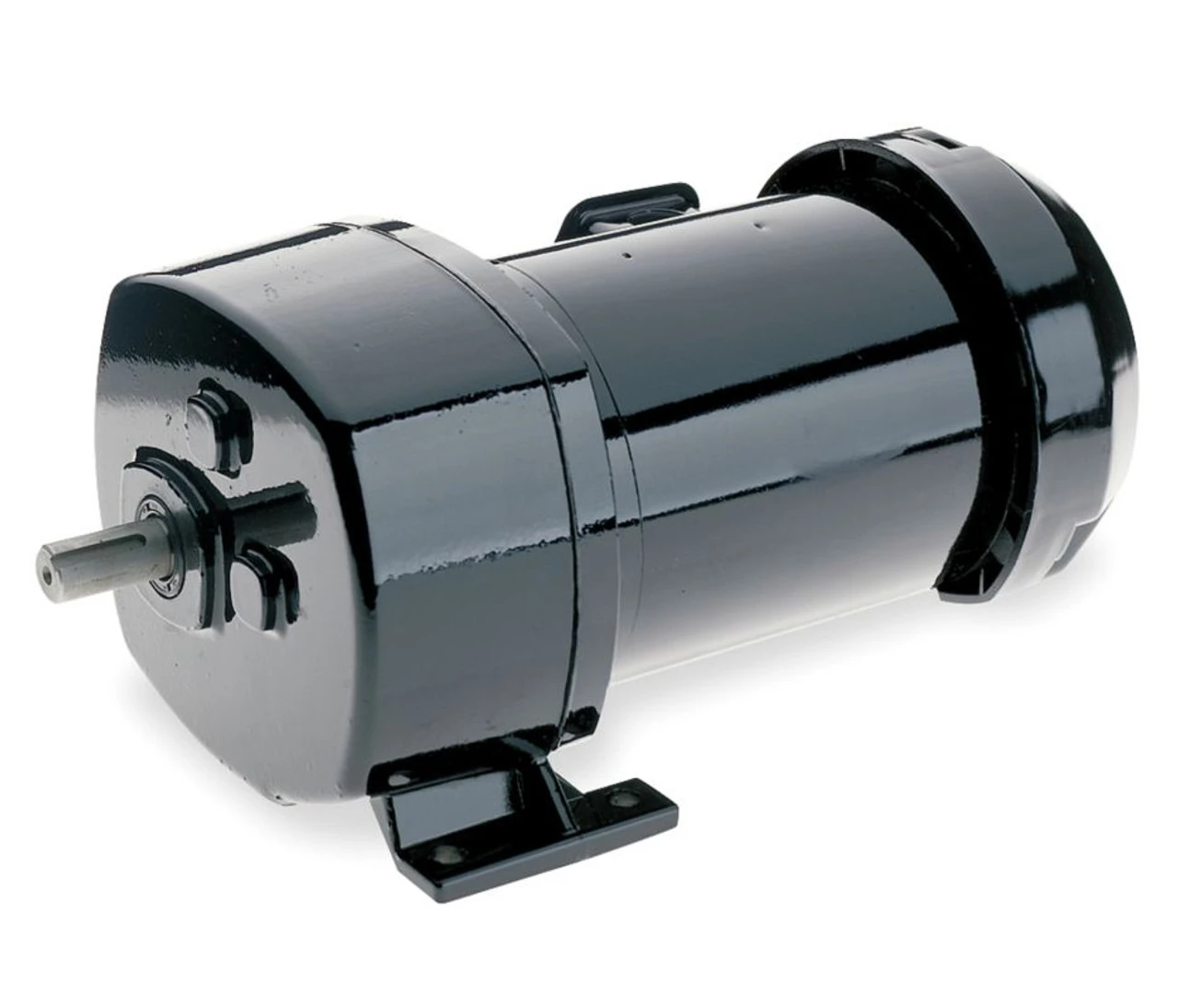

- 485 Series AC Parallel Shaft Gear Motor – Subject to factory availability-email or call for availability
- Torque 163 inch pounds; Over Hung lbs. = 491
- Rotation = Reversible; Junction Box Included
- 1/2 hp 163 RPM, 1.6 amps; 230V; 6-90 hz.; Three Phase
- TEFC Enclosure, Keyed Shaft, Ball Bearings
Motor: Meets NEMA MG 1 sct 31; Powder-coat gloss black; Motor Bearings: Double shielded ball; Thermostat: Signal type; closed. UL/CUL recognized. Gearhead Specifications: Precision machined die cast aluminum ; Lubrication: Lifetime oil bath; Hardened steel shafts; Mounting: Face (any angle) or footplate. Gearing: AGMA class 9 heat treated steel, 1st stage helical metal, balance spur metal. Bearings: Needle with thrust ball. One Year Manufacture Warranty. Opening motor voids the warranty. Dayton Reference 4Z393.
