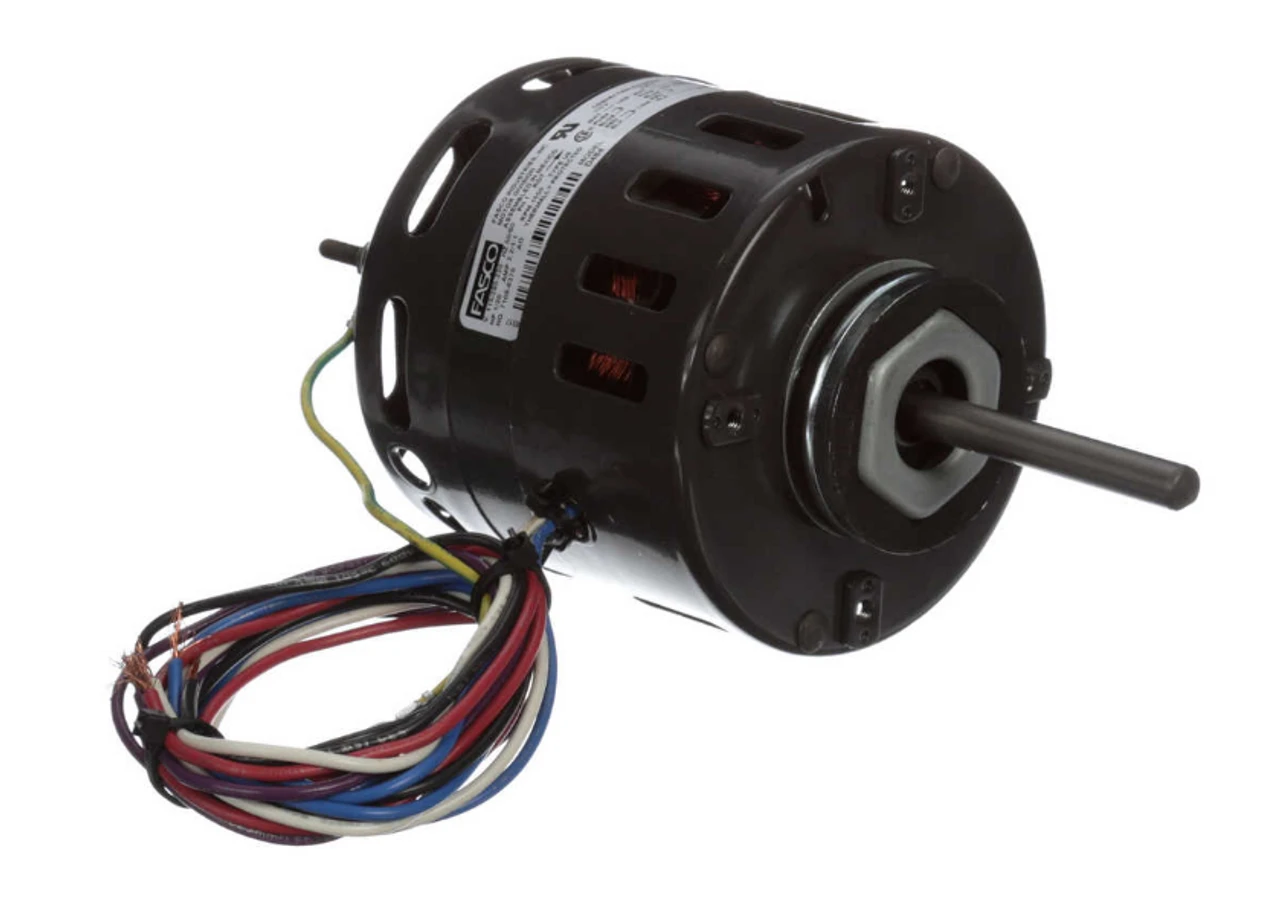

Fasco D484 Motor | 1/20 Hp 1550 RPM CW 4.4″ Diameter 115/208-230 Volts

• 1/20 hp 1550 RPM, 2.2/1.1 amps, 115/230 Volts 60hz.
• Refrigeration Fan Motor
• Shaft: 3/8″ x 3 1/8″ Rotation = CWSE
• Includes 3/8″ to 1/2″ shaft bushing
• Sleeve bearings
• Motor Length Less Shaft = 4″
• 1 Year Manufacture Warranty.

Application Information: Refrigeration Fan Motor. Shaded pole motor. Open ventilation-self cooled. Mechanically reversible. 3/8″ Shaft Diameter with adapter to convert to 1/2″ diameter. Weld nuts on a 3.5″ bolt center for stud mount. Extended hubs with rubber rings for base mount. Interchangeable with G.E. 21 and 29 frame motors and other Emerson, Universal and Franklin refrigeration motors. UL recognized, CSA certified. Can be operated on 50hz with air-over applications. GE Suggested replacement reference for: 2341, 2342
