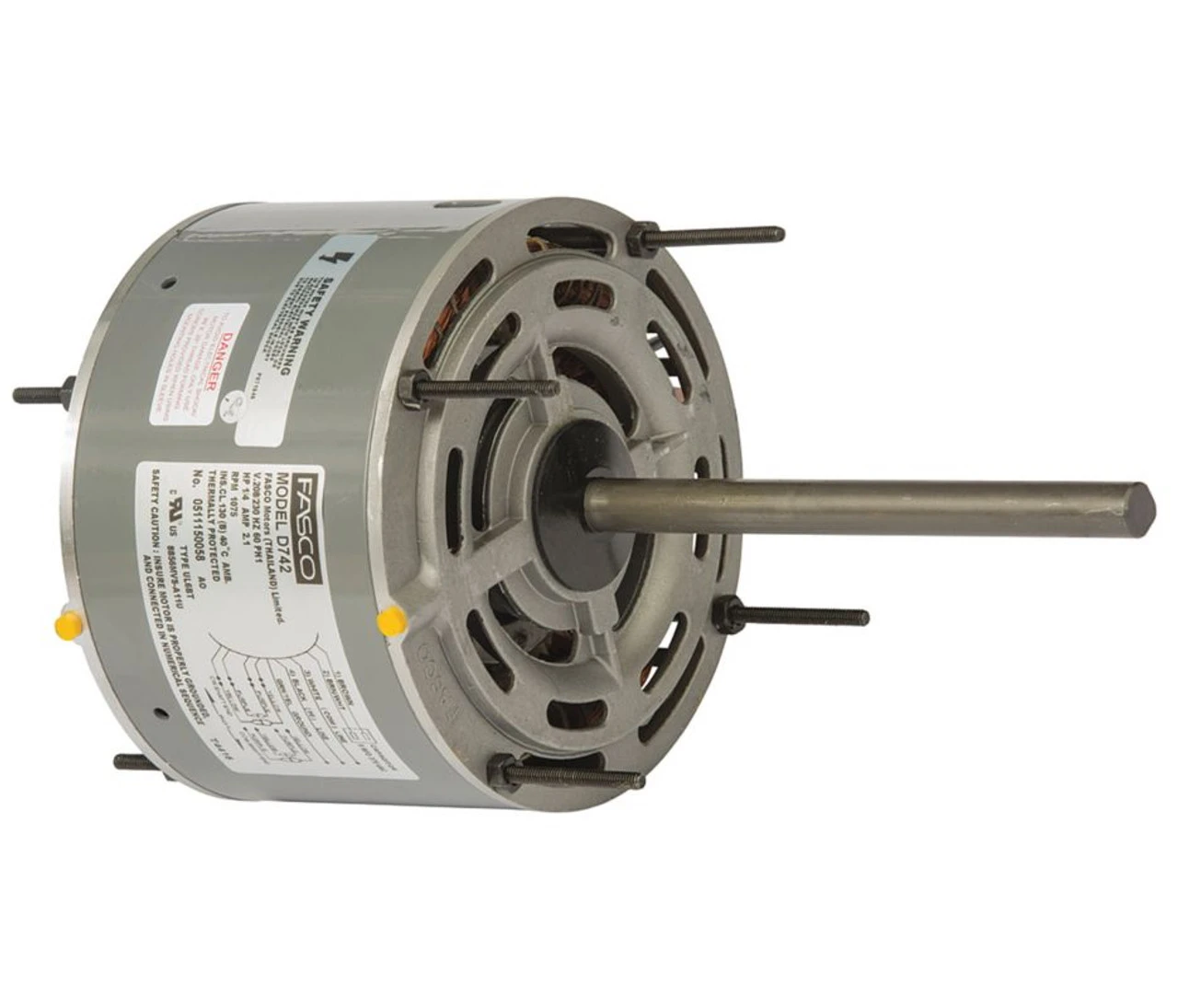

Fasco D742 Motor | 1/4 Hp 1075 RPM 5.6″ Diameter 208-230 Volts

• 1/4 hp 1075 RPM, 2.1 amps, 230 Volts 60hz.
• Shaft: 1/2″ x 6″ Rotation = Reversible
• Bolt Circle – 5.2″
• Belly Band Mount or Base Mount
• Required 5 MFD 370V Capacitor Included
• Sleeve bearings
• Motor Length Less Shaft = 4″
• 1 Year Manufacture Warranty

Application Information: Condenser Fan (Air Conditioner). Permanent Split Capacitor motor, open ventilation-air over. Shaft down or Horizontal mount. All angle mount bearings, Closed end shield-opposite shaft end, CSA certified, UL recognized, Includes shaft slinger, 60 degrees ambient temperature rating. Has 4 drilled and tapped holes in shell. Dayton 49VT92.
