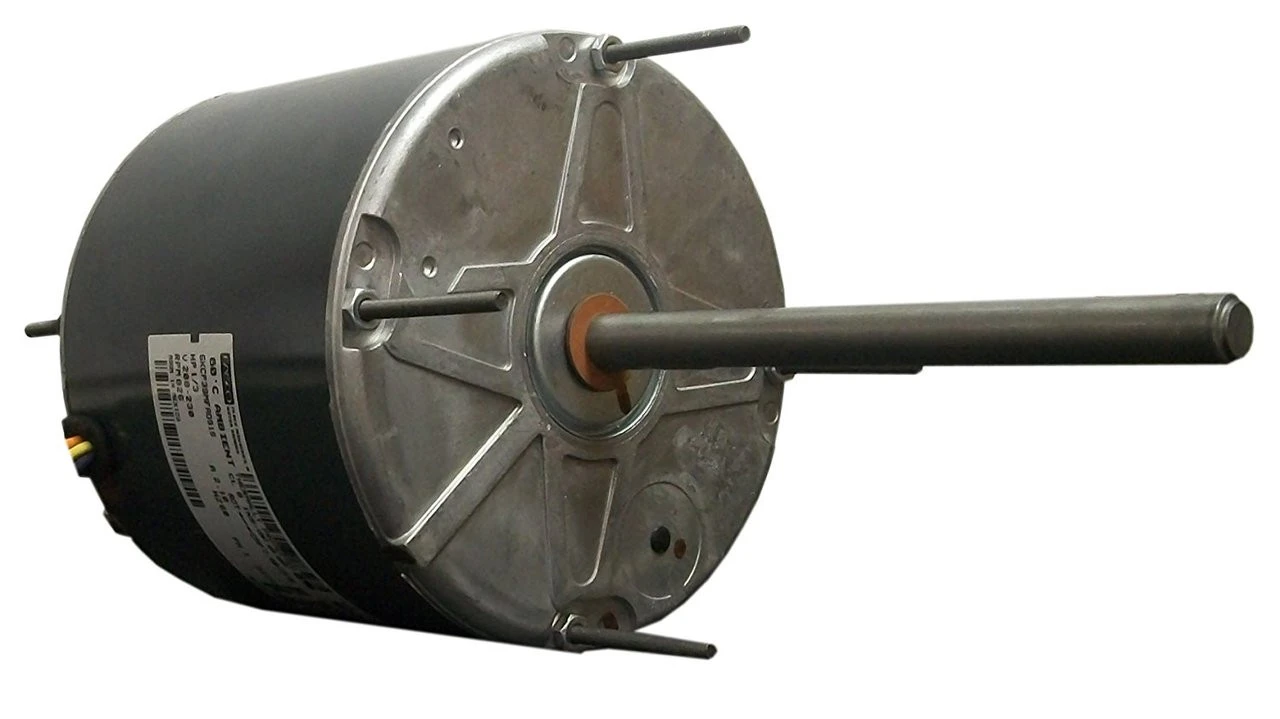

Fasco D791 Motor | 1/3 Hp 825 RPM 5.6″ Diameter 208-230 Volts

• 1/3 hp 825 RPM, 2.6 amps, 230 Volts 60hz.
• Shaft: 1/2″ x 6 1/2″ Rotation = Reversible
• Bolt Circle – 5.2″
• Belly Band Mount or Base Mount
• Required 5 MFD 370V Capacitor Included
• Ball bearings
• Motor Length Less Shaft = 5″
• 1 Year Manufacture Warranty.

Application Information: Condenser Fan (Air Conditioner). Permanent Split Capacitor motor, Open Ventilation-air over. Shaft up or Horizontal mount. All angle mount bearings, CSA certified, UL recognized, 60 degrees ambient temperature rating. Use rain shield when necessary. Has 4 drilled and tapped holes in shell.
