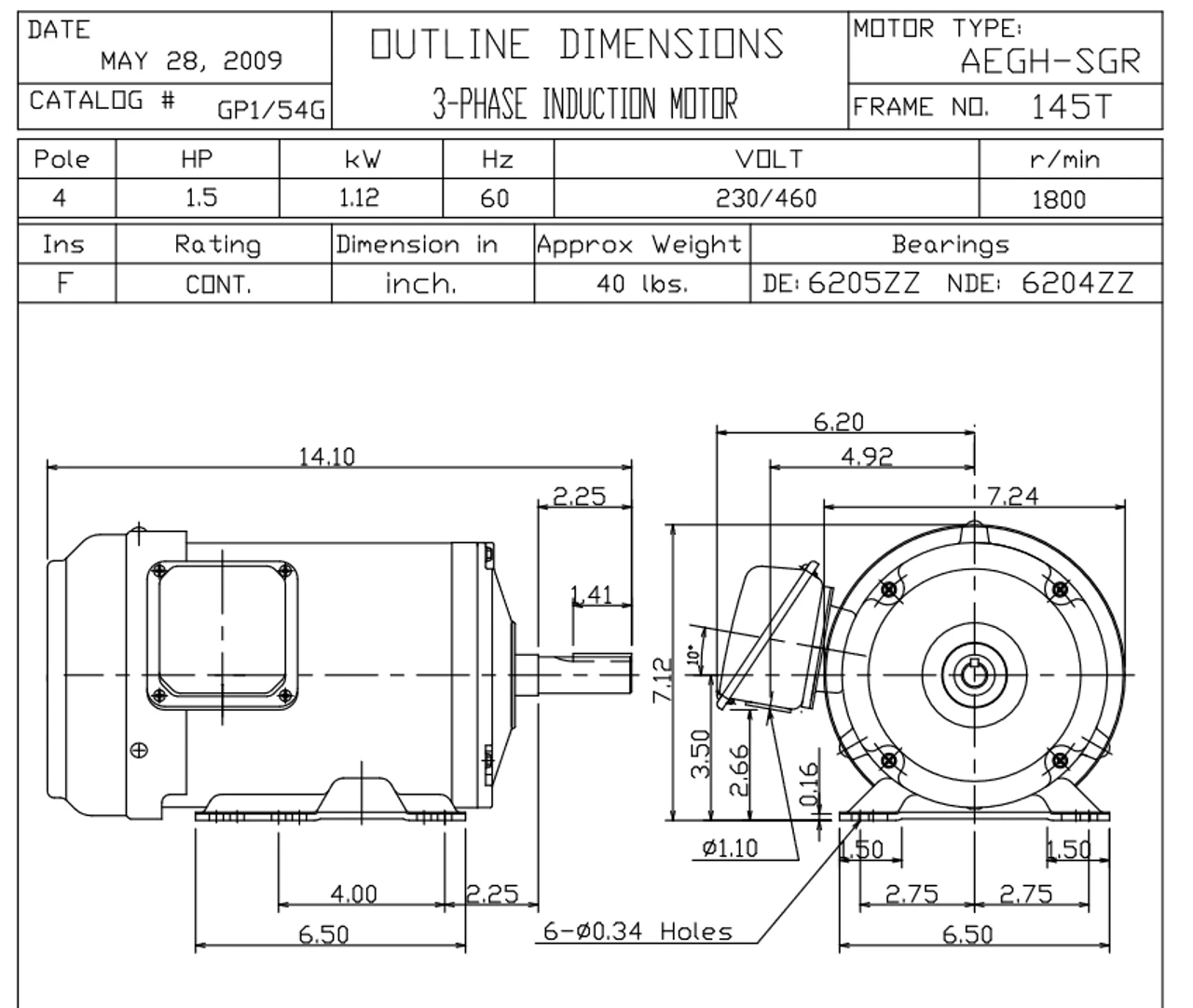

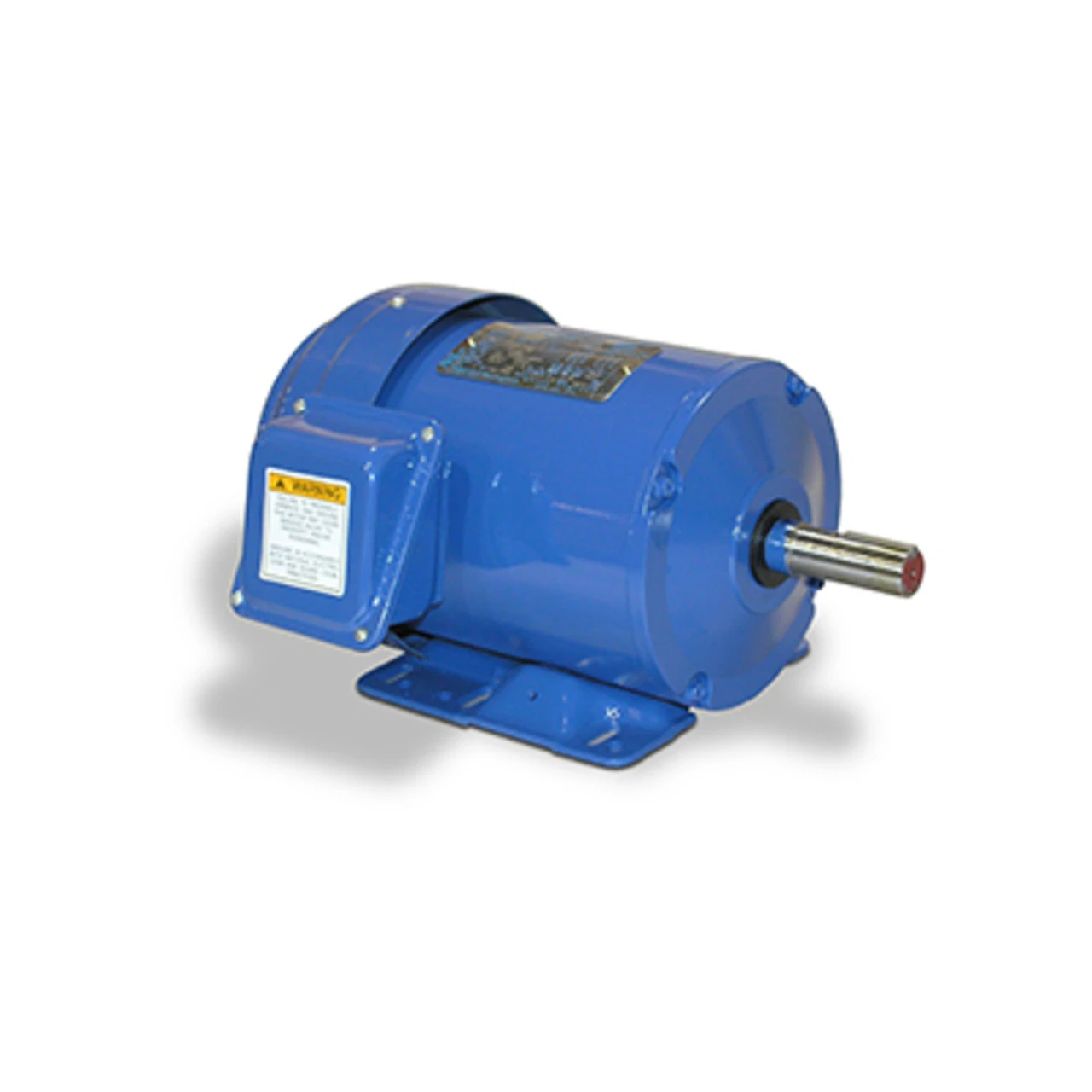

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR
- 1 1/2 hp 1800 RPM, 4.01/2.01 amps 230/460 Volts 60 Hz. Three Phase
- NEMA 143/145TC Frame, Keyed Shaft 7/8″ Diameter x 2 1/4″
- Rolled Steel Frame, Enclosure: Totally Enclosed Fan Cooled (IP44)
- Service Factor: 1.15, Thermal Overload Protection: None
- Rigid Base, Reversible, Ball Bearings, Class F Insulation
- Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
- Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
- Motors are U.L. Recognized, CSA Approved and CE Marked
- 1 Year Manufacture Warranty
Motor comes with Shaft Grounding Rings (SGR) to protect bearings from excessive currents. Applications: Fans & Blowers, Pumps, Compressors, Mixers, Conveyors, HVAC Equipment
