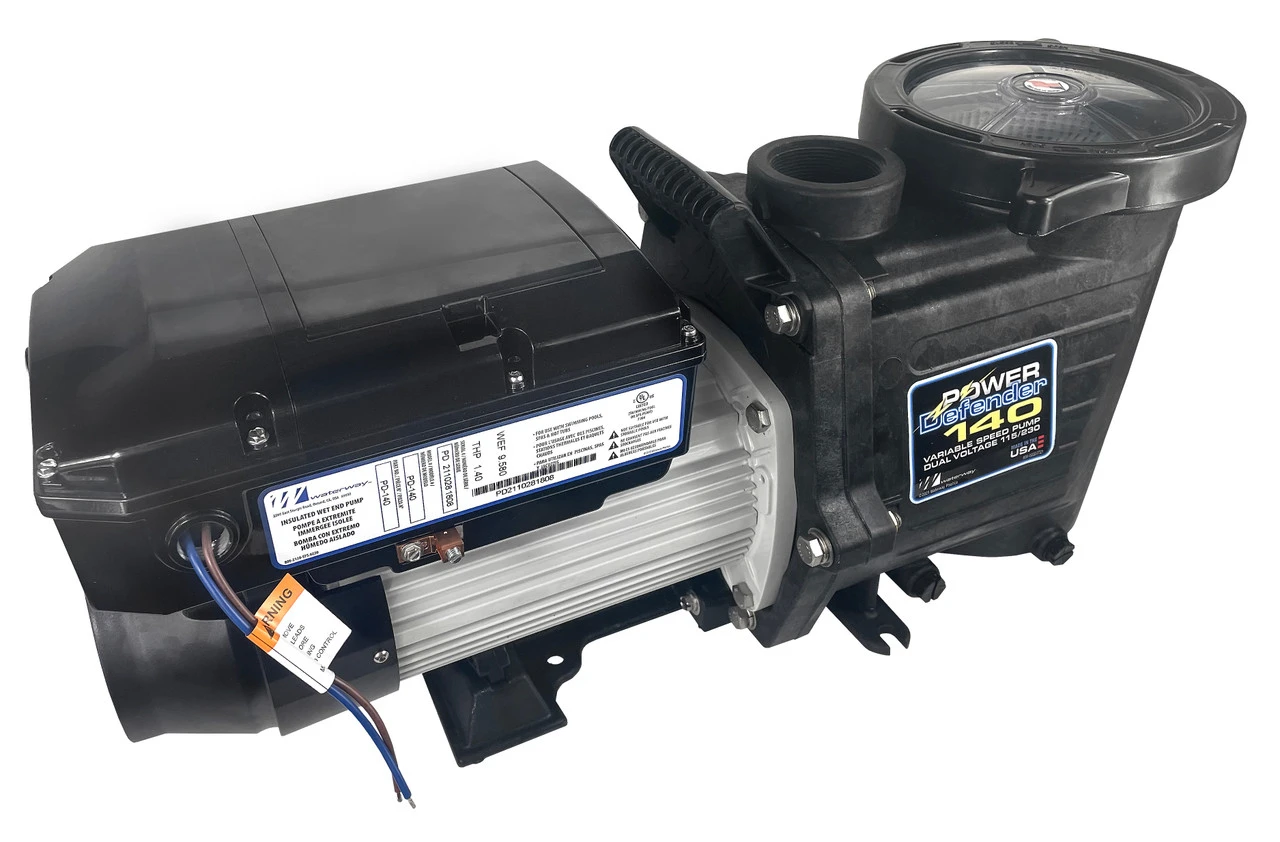

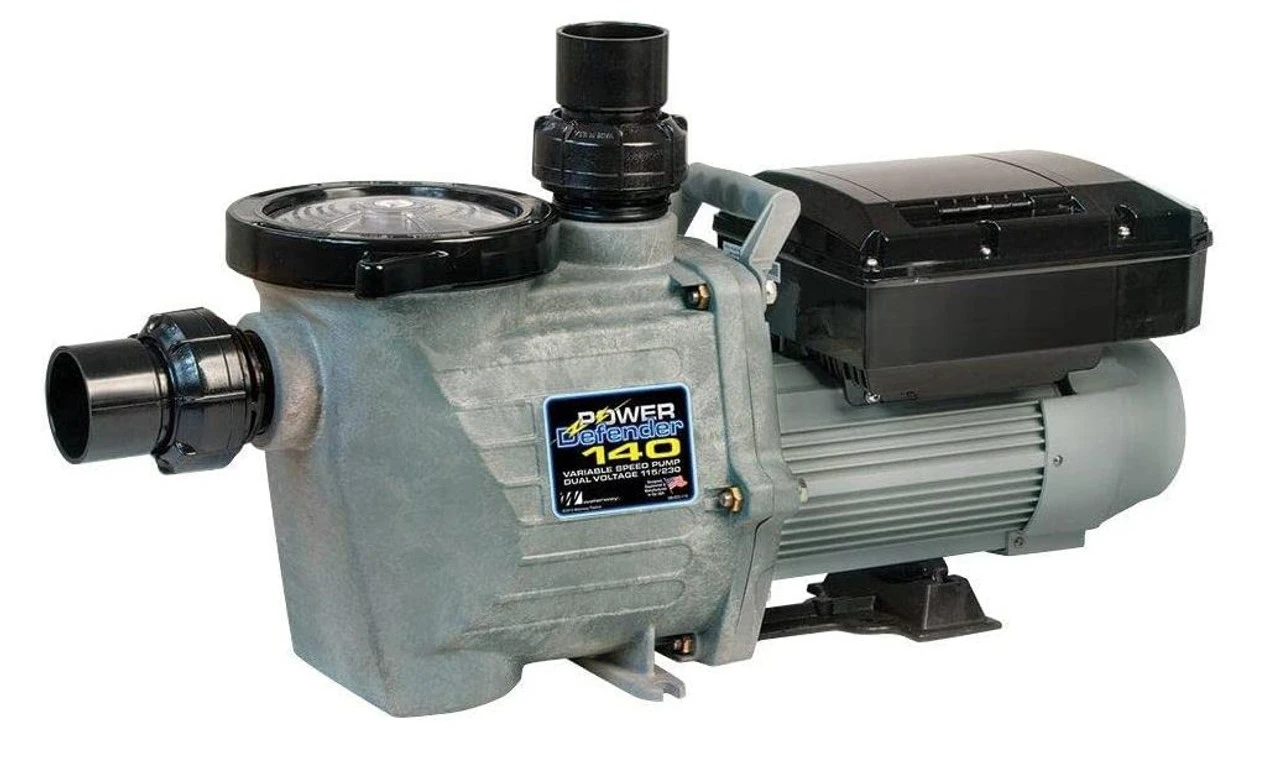

PD-140 Waterway Power Defender 1.40 HP 115/230v Variable Speed Inground Pool Pump

NEW! Power Defender 140 by Waterway Plastics

• 1.40 THP (Total Horsepower)
• 9.58 WEF (Weighted Energy Factor)
• 600-3450 RPM Variable Speed
• 115/230 Volts, 16.2/9.4 Amps, Rated for 50/60Hz

• Inlet/Outlet – 2″ MPT Threads
• Fully Integrated Variable Speed Motor & Control
• Proposed DOE Law & CEC Title 20 Compliant


Please seek help with a licensed pool technician to properly size your new pool pump to your pool size. With the new DOE Law rules existing beliefs of HP are now being replaced with THP, which may change what actual size pump you require.  Under the tab PDF Documents is the Department of Energy’s PDF on helping with selecting the new variable speed pump, we suggest reading, page 6-7 discusses about sizing of the new pump.

Variable Speed Pool Pump, Variable Speed Inground Pool Pump

High Performance and Ultra Quiet Variable Speed Pool & Spa Pump provides you with up to 90% energy savings.
Innovative, Patent Pending technology automatically actuates a Diverter Valve to direct the flow of water to the Pressure Pool Cleaner and increase the pump speed and pressure.
Built in Pool Control – easily  program various day, time and speed settings, and actuate Diverter Valves to run in Pool Filtration, Spill Over and Spa Mode.

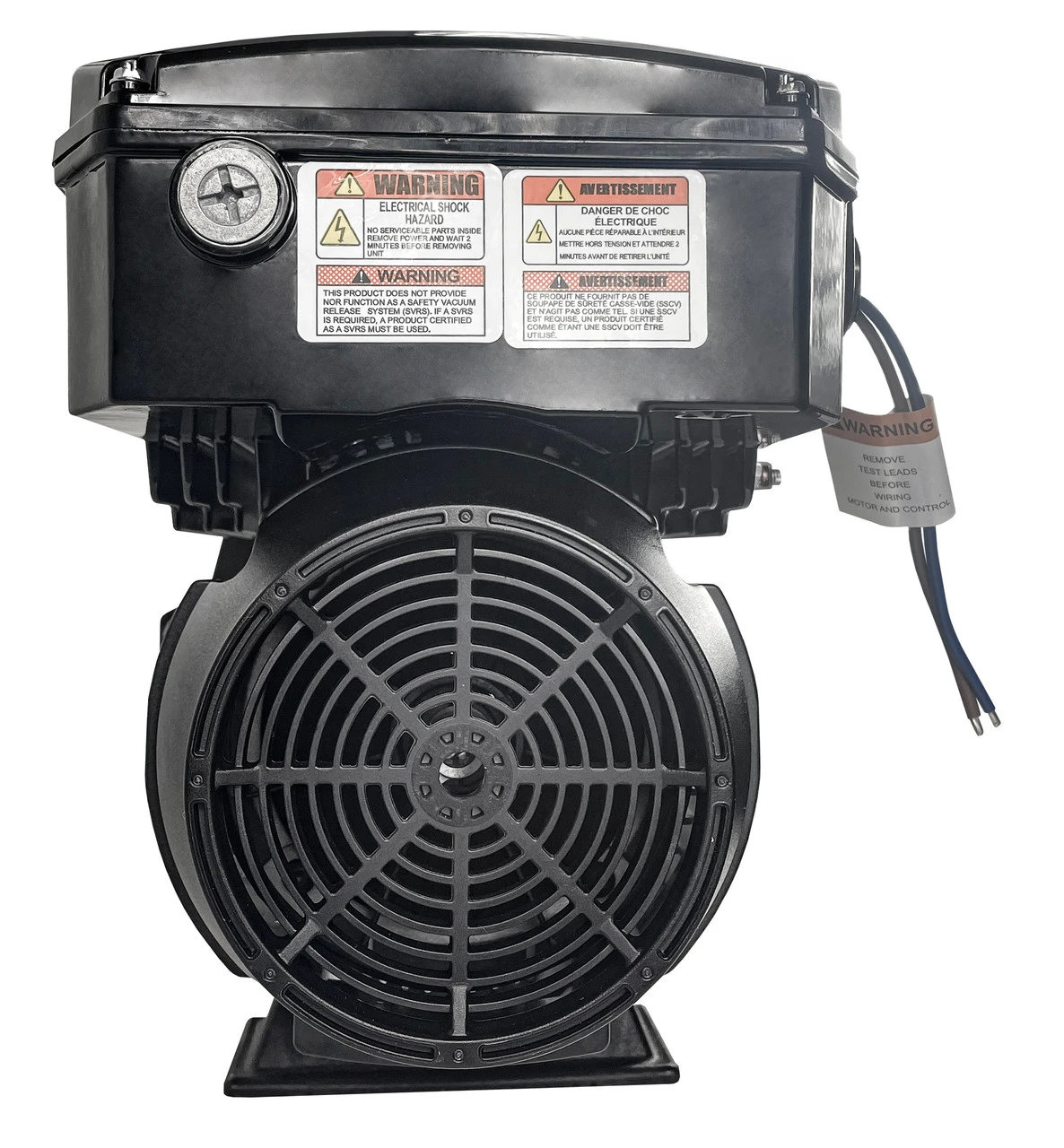

The latest technology Variable Speed Motors, totally enclosed construction with a powerful external fan – protects the motor against dirt and moisture and provides for extremely cool operation of the motor.
No drop in horsepower at either voltage.
Comes with PVC adapters, accepts 2″ PVC

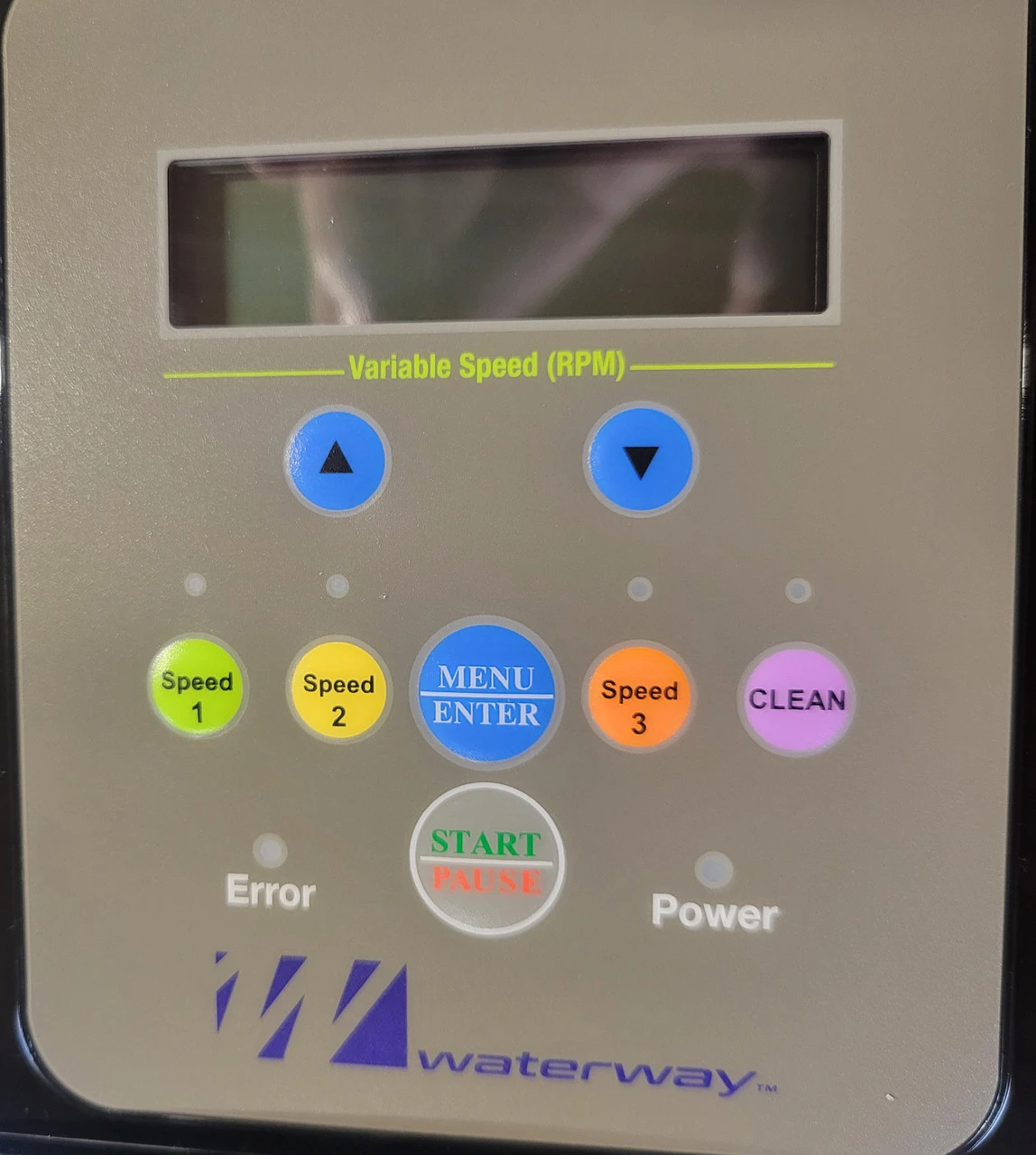

Simple & Intuitive User Interface Up to Seven On/Off Time & Speed schedules available. Preprogrammed to meet the Proposed DOE Law & the CEC Title 20 Rule One touch speed settings closely tie to the 2021 DOE Rule speed settings: Speed 1 = 1350 RPM, Speed 2 = 1725 RPM, Speed 3 = 2760 RPM One touch Clean button which runs the motor at 3450 RPM for 30 minutesUp and Down arrows allow for navigation through menu options and allow for one touch +/- 10 RPM speed changes for fine tuning flow rates LCD screen alternately displays time of day and current speed then the current operation mode and the time remaining in this mode
