Name: SN1152 Century 1.5 Hp 3450 RPM 56J - 115/208-230V Northstar Swimming Pool Motor Century # SN1152
SKU: ZWXLY 1698654924
Availability: InStock

Sale!

SN1152 Century 1.5 Hp 3450 RPM 56J - 115/208-230V Northstar Swimming Pool Motor Century # SN1152

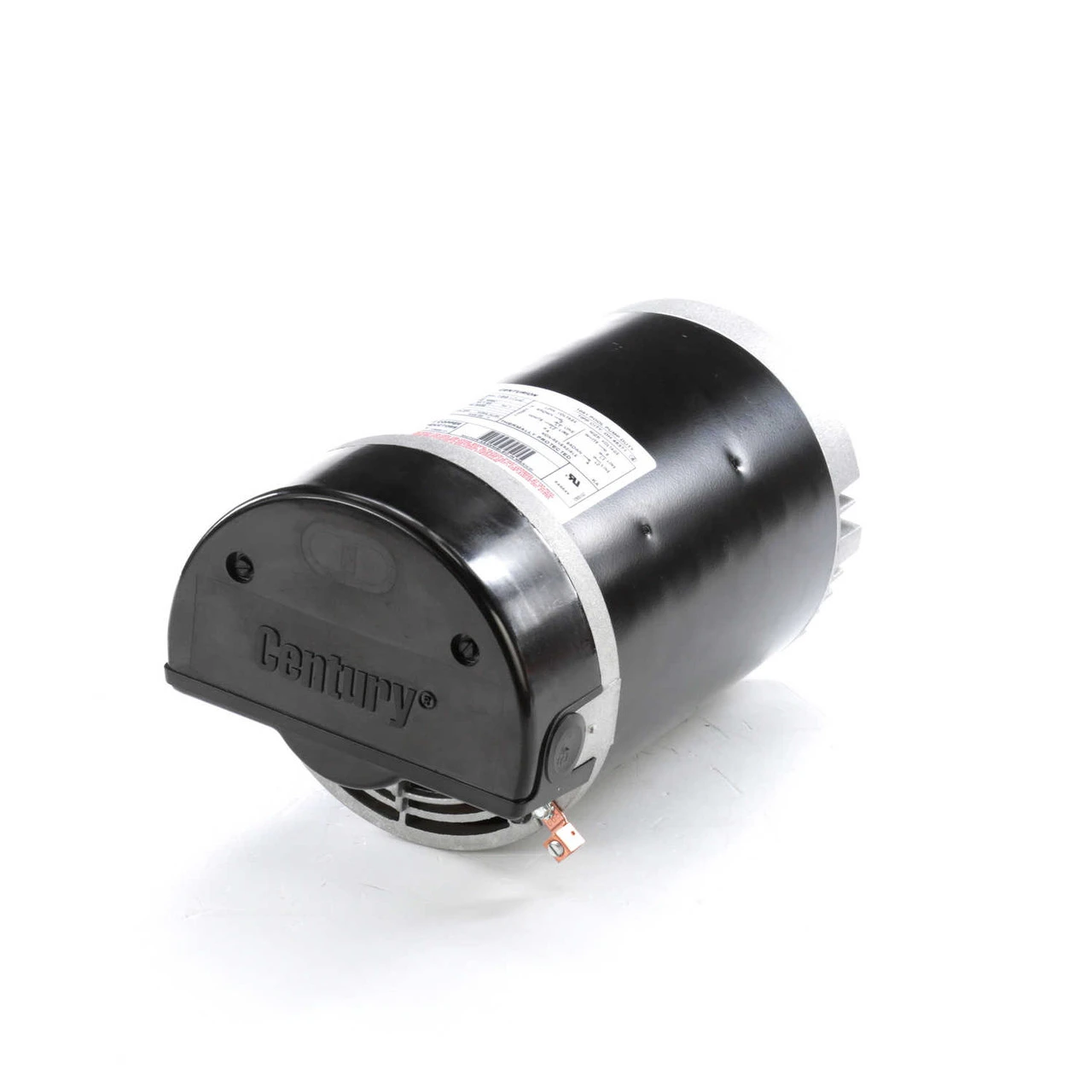

SN1152 Century 1.5 Hp 3450 RPM 56J - 115/208-230V Northstar Swimming Pool Motor Century # SN1152 - Image 2

SN1152 Century 1.5 Hp 3450 RPM 56J - 115/208-230V Northstar Swimming Pool Motor Century # SN1152 - Image 3

Original price was: $386.00.Current price is: $99.99.

SKU: ZWXLY 1698654924 Category: Pool & Spa Motors Tag: Century Electric Motor

Multiple payment methods, 100% payment security
Quality at its Finest
Uncompromising quality, every time.
Get Quality, Get More

Description
Reviews (0)

HAYWARD NORTHSTAR REPLACEMENT MOTOR
HAYWARD PART NO. SP1615Z1BNSC

1.5 HP 3450 RPM, 20.4/10.2 amps, 115/208-230V 60hz.
Automatic Overload Protection – Service Factor 1.60
Non-Reversible – CCW Rotation facing the shaft
C-Face Mount, Round Body-no base
56-J Frame; 5/8″ diameter threaded stainless steel shaft
1 Year Manufacture Warranty

This is the motor Hayward uses on the Northstar inground pool pump. This is an Energy Efficient, full rated motor with a High Service factor. Amps are stated based on the full service factor. Stainless steel shaft, sealed ball bearings, switchless, E-Coated main frame for superior corrosion resistance.
Motor has 4 threaded bolt holes on face for mounting the pump to the motor.
Bolt holes are 5 7/8″ on center measured across the shaft.
Wiring diagram on motor name plate.

US Electric Equivalent ESN1152
