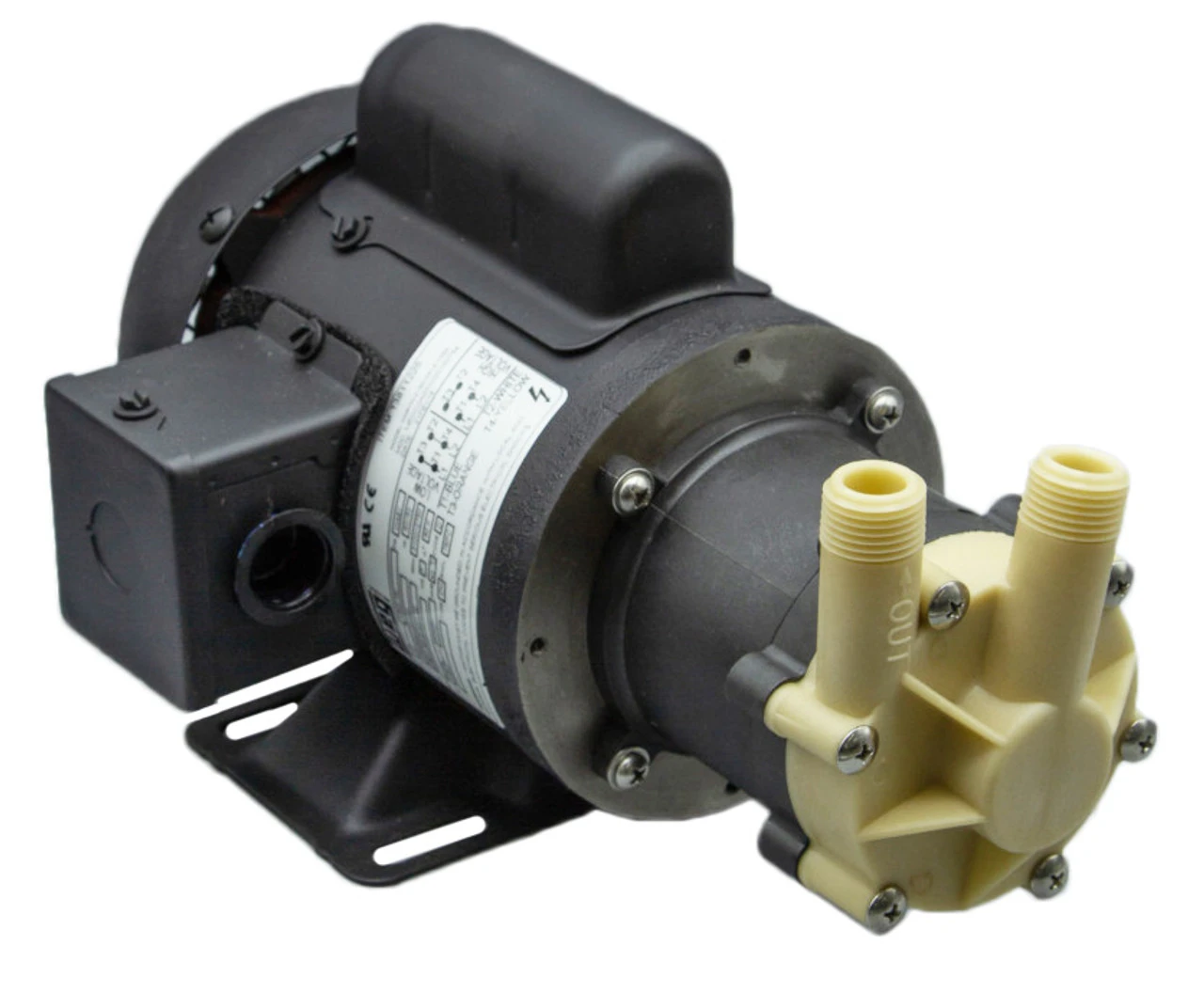

TE-MDK-MT3 March Pump | 115/230, 1/2″ Inlet/Outlet

• 1/2″ MPT Inlet/1/2″ MPT Outlet
• 1/15 hp; 3450 RPM; 1.0/.50 Amps, 115/230V 50/60hz.
• 10 GPM; 17′ Max. Head Feet
• Max Internal Pressure: 75 PSI / 5.2 bar
• Max Liquid Temperature: 200 °F / 93 °C
• Conduit Box
• One Year Warranty

March Part No. 0135-0088-0300

Perfect for Applications Including
Applications for the TE-MDK-MT3 Magnetic Drive Pump include etching equipment, photographic processing equipment, ice flakers, plate processors, and marine air conditioning.

Great for Chemicals Including
The TE-MDK-MT3 has pumped Acetic Acid, Citric Acid, Ethylene Glycol, Formaldehyde, Hydrochloric Acid (Muriatic), Hydrofluoric Acid, Hydrogen Peroxide, Nitric Acid, Phosphoric Acid, Potassium Chloride, Sodium Chloride, Sodium Hypochlorite, Sulfuric Acid, Fresh Water, Salt Water, DI Water, and many more chemicals. The TE-MDK-MT3 may have been modified to handle these chemicals. This pump may have to be modified to pump specific gravities, viscosities, or elevated temperatures different then ambient water. Please contact March Pump to review your application before using the TE-MDK-MT3.

Summary
March Pump’s industrial TE-MDK-MT3 is an American seal-less centrifugal magnetic drive pump ideal for applications such as chemical recirculation and chemical transfer. It is capable of generating a maximum flow of 10 gallons per minute at 1 foot, and its maximum head is 17 Feet (7PSI). The standard wet end (the materials that come into contact with the solution) is composed of glass filled Kynar (PVDF), Viton, and Ceramic. The inlet connection is 1/2 inch male pipe thread, and the outlet is 1/2 inch male pipe thread. The standard motor is a 1 Phase 60 hertz 115/230V and 50 hertz 110/220V 0.2 horsepower totally enclosed fan cooled motor. The maximum internal pressure the pump can tolerate is 75PSI, and the maximum liquid temperature is 200 Fahrenheit or 93 Celsius. The March TE-MDK-MT3 centrifugal magnetic drive pump is capable of handling mildly or highly corrosive chemicals, acids, and solvents.

To determine if the March TE-MDK-MT3 is suitable for your application, please contact March Pump.
