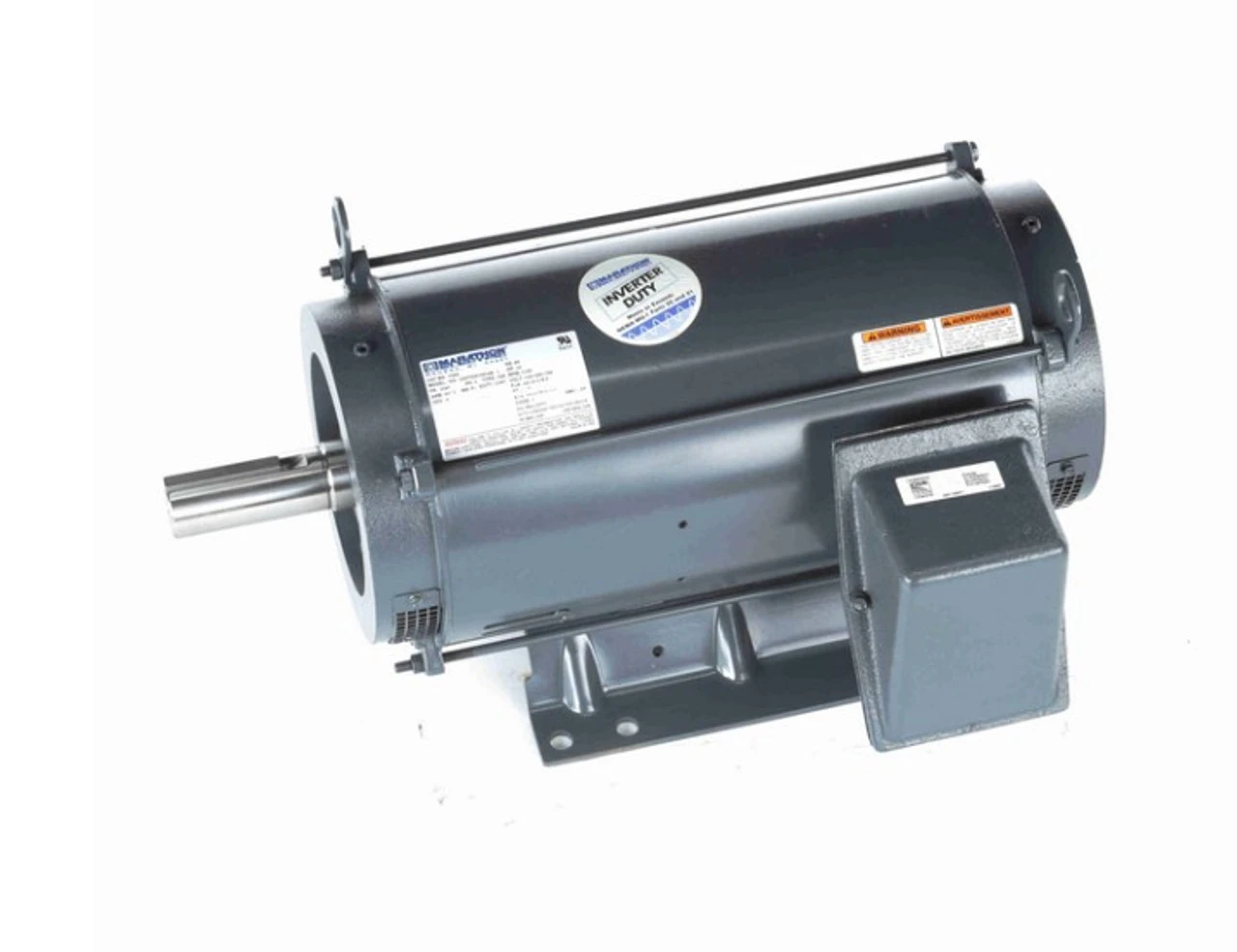

Y204 Marathon 10 Hp 230/460/796V 1200 RPM ODP 256T Frame 3-Phase Oil Pump Motor

Sale!

Y204 Marathon 10 Hp 230/460/796V 1200 RPM ODP 256T Frame 3-Phase Oil Pump Motor

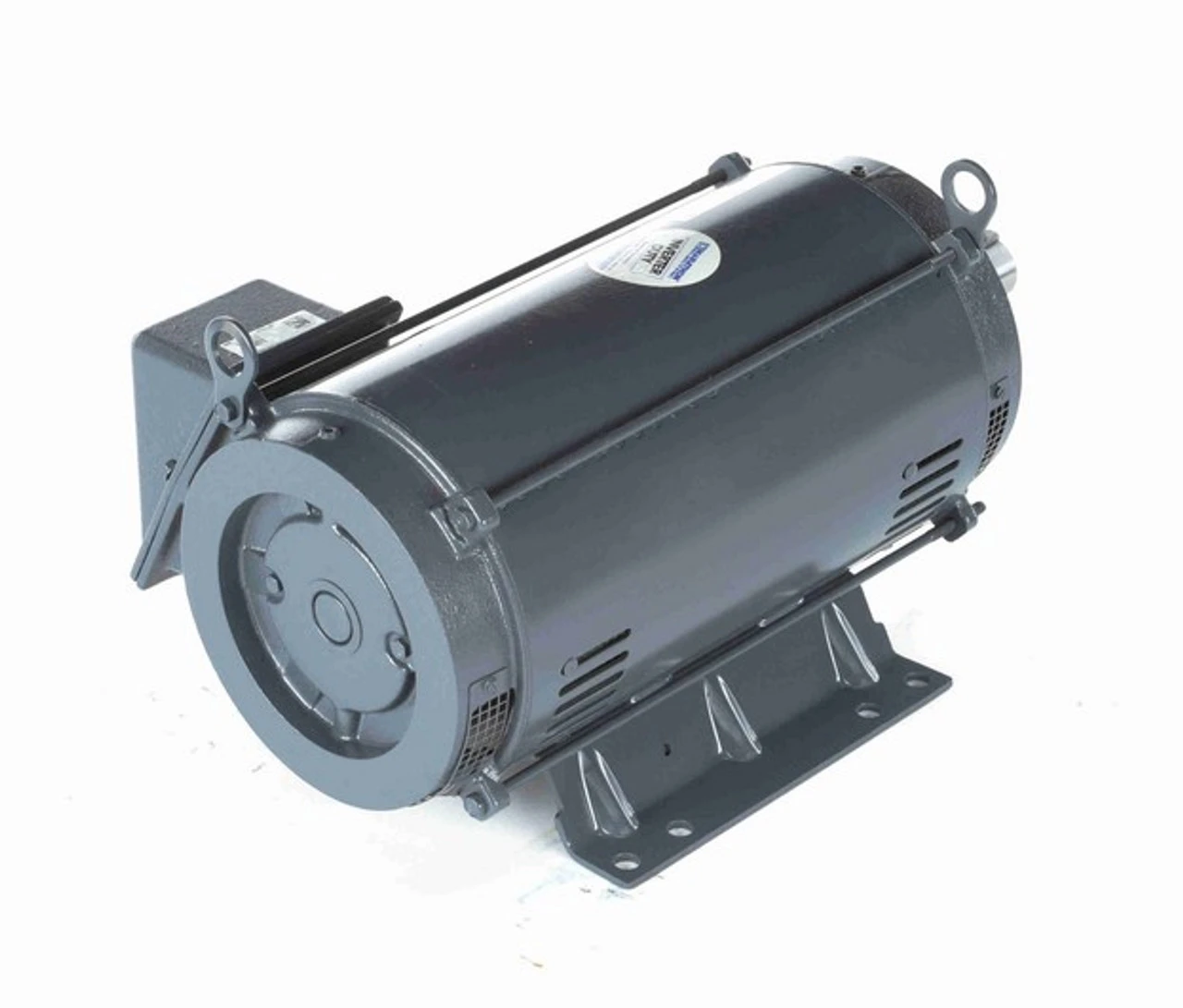

Y204 Marathon 10 Hp 230/460/796V 1200 RPM ODP 256T Frame 3-Phase Oil Pump Motor - Image 2

Y204 Marathon 10 Hp 230/460/796V 1200 RPM ODP 256T Frame 3-Phase Oil Pump Motor - Image 3

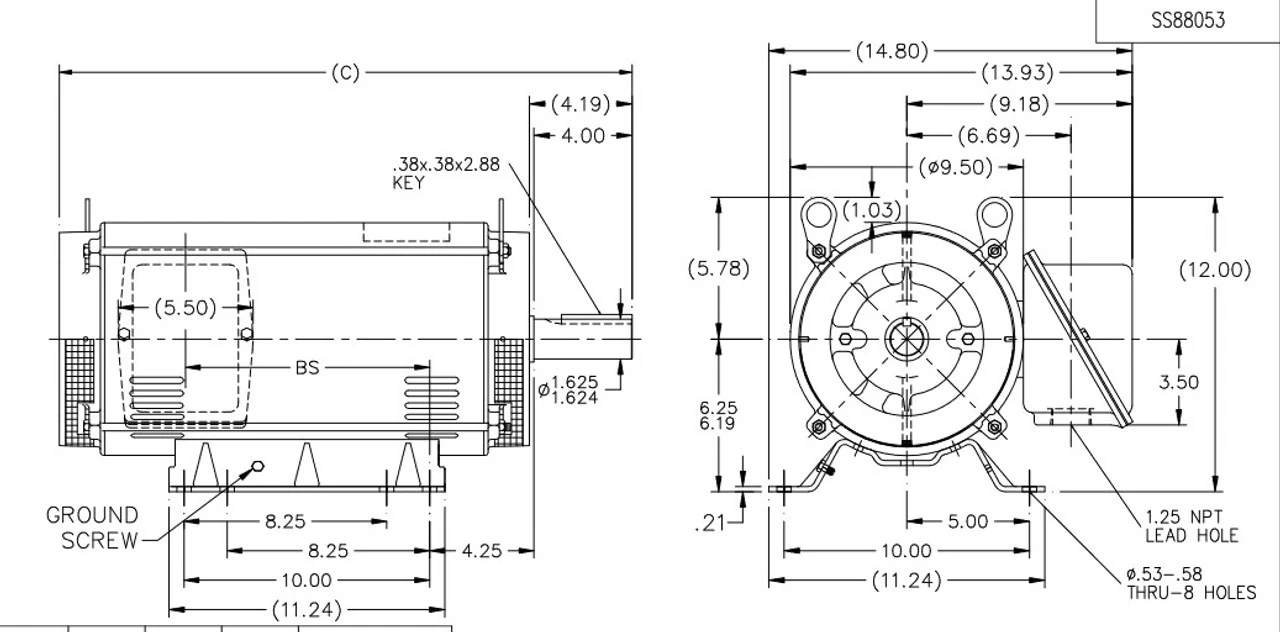

Y204 Marathon 10 Hp 230/460/796V 1200 RPM ODP 256T Frame 3-Phase Oil Pump Motor - Image 4

Original price was: $329.00.Current price is: $97.99.

SKU: ZWXLY 1698666555 Categories: Electric Motors, Well Pump Motors Tag: Marathon

Multiple payment methods, 100% payment security
Quality at its Finest
Uncompromising quality, every time.
Get Quality, Get More

Description
Reviews (0)

10 hp 1200 RPM, 29.0/14.5/8.4 amps, 230/460/796 Volts 60 Hz, 3-Phase
NEMA 256T Frame, Shaft 4″ x 1 5/8″ Diameter, 1 speed
Service Factor = 1.15, Thermal Protection = None
Rigid Base, Reversible rotation, Ball Bearings, Class F insulation
1 Year Manufacture Warranty

For use on blowers and pumps having variable running loads. Shaft should be horizontal. ODP = Open Drip Proof. 256TTDX7391
