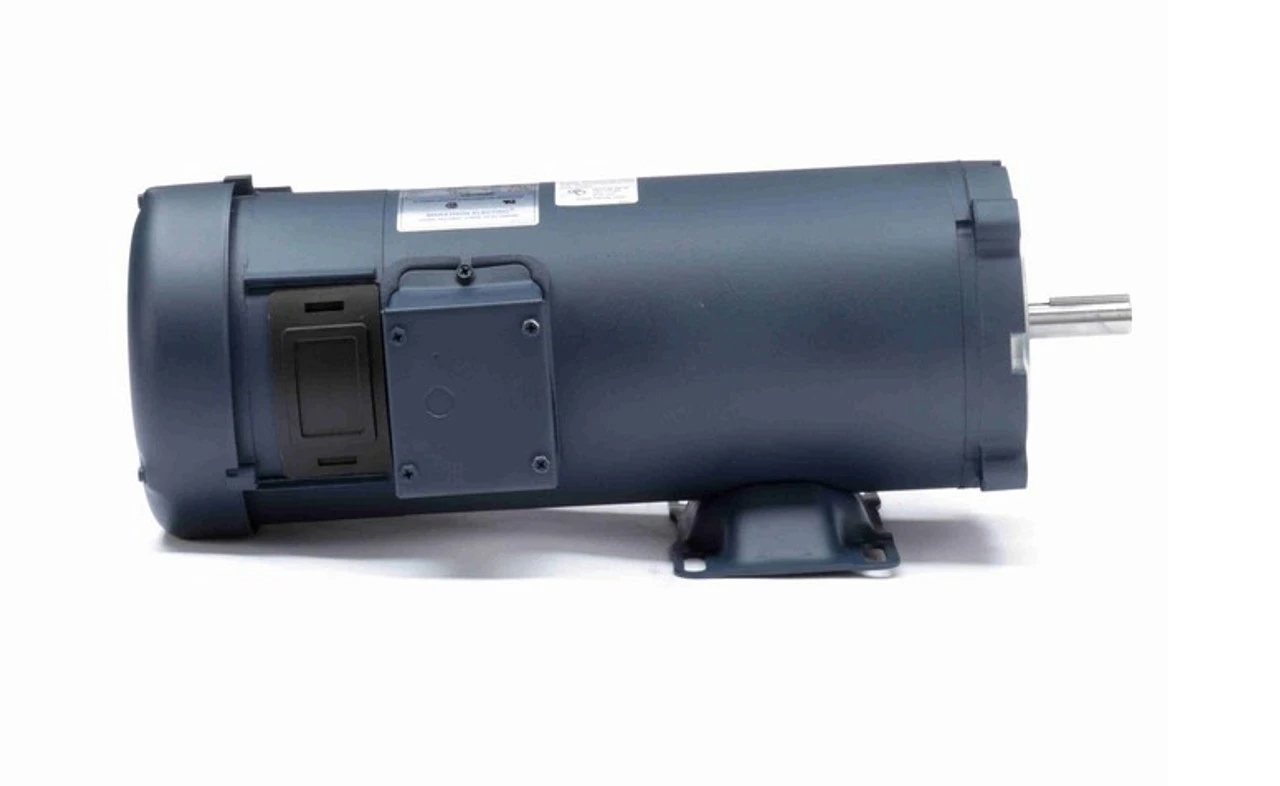

Name: Z614 Marathon 1 1/2 Hp 180 V DC SCR 1750 RPM Perm. Magnet C-Face 56C Frame TEFC (rigid Base)
SKU: ZWXLY 1698665298
Availability: InStock

Sale!

Z614 Marathon 1 1/2 Hp 180 V DC SCR 1750 RPM Perm. Magnet C-Face 56C Frame TEFC (rigid Base)

Z614 Marathon 1 1/2 Hp 180 V DC SCR 1750 RPM Perm. Magnet C-Face 56C Frame TEFC (rigid Base) - Image 2

Z614 Marathon 1 1/2 Hp 180 V DC SCR 1750 RPM Perm. Magnet C-Face 56C Frame TEFC (rigid Base) - Image 3

Z614 Marathon 1 1/2 Hp 180 V DC SCR 1750 RPM Perm. Magnet C-Face 56C Frame TEFC (rigid Base) - Image 4

Original price was: $371.00.Current price is: $98.99.

SKU: ZWXLY 1698665298 Categories: DC Motors, Electric Motors Tag: Marathon

Multiple payment methods, 100% payment security
Quality at its Finest
Uncompromising quality, every time.
Get Quality, Get More

Description
Reviews (0)

1 1/2 hp 1750 RPM, 7.6 amps 180 Volts DC current.
NEMA 56C frame, C-face, Keyed Shaft 5/8″ Diameter x 1 7/8″
Service Factor: 1.0, Overload protection = None
Rigid Base, Reversible Rotation, Ball Bearings, Class F Insulation
1 Year Manufacture Warranty

Controller rated DC electric motor with a C-face mount. 20:1 constant torque. Shaft has keyway. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. 056E17F2007
